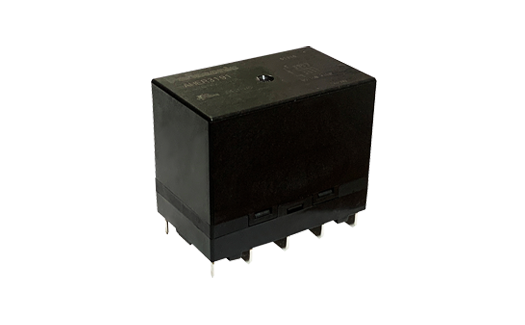

AHER1282 by panasonic electronic components
Image is representational - see mfr. specs

AHER1282

Panasonic Electronic Components

PCB Relay - 2FormA - 24VDC Coil - 80A / 277VAC - Through Hole ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

AHER1282 is a compact 2 Form A (2a) power relay designed for high-capacity switching applications. It features a 24 V DC rated coil voltage with 167 mA rated operating current and 144.0 O coil resistance, delivering 4,000 mW rated operating power with a low holding power of 490 mW. The relay provides a maximum switching current of 80 A with contact rating of 80 A at 277 V AC resistive load, and features AgNi type contact material with a minimum contact gap of 3.6 mm. With flux-resistant protective construction, mirror contact mechanisms for welding detection (IEC60947-4-1 compliant), and short circuit capability of Irms = 5 kA (UL508 compliant), this relay is ideal for charging stations and industrial equipment requiring reliable high-power switching.

Search Keywords: AHER1282

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
AHER1282
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Tray

IN STOCK: 48

Can Ship immediately

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
1
$116.85
5
$116.56
10
$116.27
13
$115.97
25
$74.22
38
$57.99
50 +
$56.83
Suppliers Standard Package
