SZNUP2105LT1G by onsemi

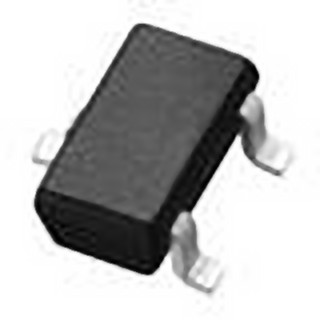

Image is representational - see manufacturer specifications
onsemi Authorized Reseller

SZNUP2105LT1G

The SZNUP2105LT1G is a dual-line, bidirectional ESD protection diode in a SOT-23 package designed to protect CAN bus transceivers. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The SZNUP2105LT1G is a dual bidirectional voltage suppressor designed to protect CAN transceivers in high-speed and fault-tolerant networks from ESD and other harmful transient voltage events. It provides robust protection with a reverse working voltage of 24 V, a peak power dissipation of 350 W per line (8/20 µs waveform), and low reverse leakage current of less than 100 nA. Housed in a compact SOT-23 package, this device features low capacitance to support high-speed CAN data rates. As an AEC-Q101 qualified and PPAP capable component, it is ideal for automotive networks, industrial control systems, and other applications requiring high reliability and stringent EMI compliance.

Search Keywords: SZNUP2105LT1G

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
onsemi
Part No:
SZNUP2105LT1G
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541100050
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3000

FREQUENTLY ASKED QUESTIONS

Is SZNUP2105LT1G RoHS compliant?

Yes, SZNUP2105LT1G is RoHS compliant.

What is the lead time for SZNUP2105LT1G?

The standard lead time for SZNUP2105LT1G is approximately 41 weeks. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 0

On Order: 240,000   can ship 12/2/26

Minimum Order Quantity: 3000

Multiple: 3000

Factory Lead-Time 41 Weeks

Price (USD)

Qty
Unit Price
3,000
$0.0806
6,000
$0.0798
9,000
$0.0790
12,000
$0.0788
27,000
$0.0786
51,000
$0.0784
102,000
$0.0782
150,000 +
$0.0780
Supplier's Standard Package
