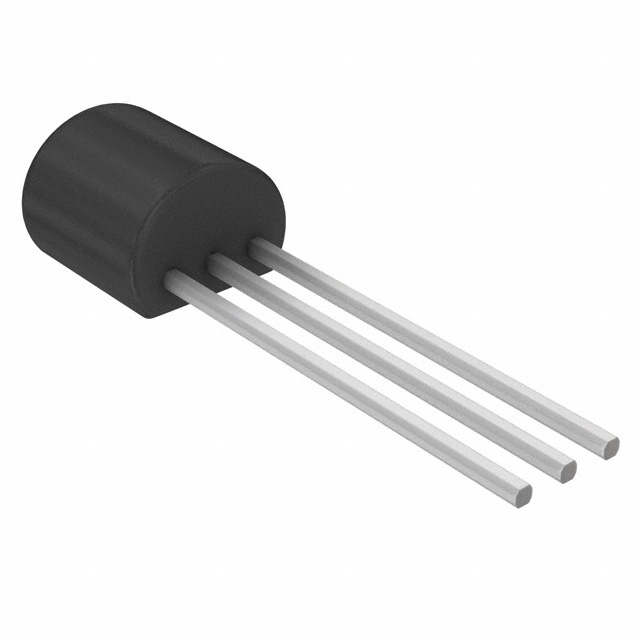

MPSA06RA
MPSA06RA
In Stock: 6,000
Minimum Order: 2,000
VIEW PRODUCT
MPSA06 by onsemi
Image is representational - see manufacturer specifications
onsemi Authorized Reseller

MPSA06

The MPSA06 is an NPN transistor designed for general-purpose amplifier applications at collector currents up to 300 mA. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The MPSA06 is an NPN transistor intended for general-purpose amplifier use. It features a collector-emitter voltage of 80 V and can handle a continuous collector current of 500 mA. The device offers a minimum DC current gain (hFE) of 100 and a current gain-bandwidth product of at least 100 MHz. With a total power dissipation of 625 mW and a wide operating junction temperature range, this transistor is suitable for various low-power amplification and switching circuits requiring a reliable NPN device in a TO-92 package.

Search Keywords: MPSA06

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
onsemi
Part No:
MPSA06
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541210095
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10000
Dimension:
5.2(Max) x 4.19(Max) x 5.33(Max) mm
Family:
MPSA06
Maximum Collector Base Voltage:
80 V

FREQUENTLY ASKED QUESTIONS

Is MPSA06 RoHS compliant?

Yes, MPSA06 is RoHS compliant.

What is the lead time for MPSA06?

The standard lead time for MPSA06 is approximately 8 weeks. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 20,547

Can Ship immediately

Minimum Order Quantity: 250

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
250
$0.1447
2,500
$0.0963
5,000
$0.0888
7,500
$0.0840
30,000
$0.0801
50,000
$0.0664
100,000
$0.0662
150,000 +
$0.0661
Log in for special pricing Click for Quote Price Match Request
