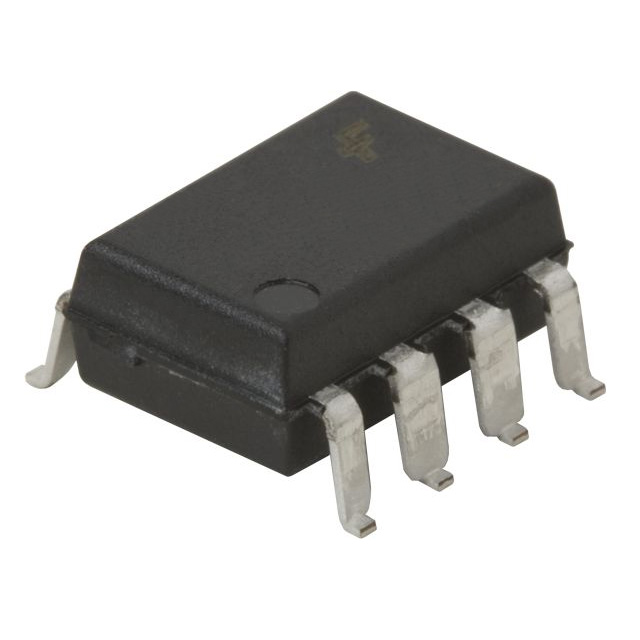

Image is representational - see mfr. specs

MCT62

The MCT62 is a dual-channel phototransistor optocoupler in an 8-pin DIP package designed for general-purpose electrical isolation. ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The MCT62 is a general-purpose, dual-channel optocoupler featuring a gallium arsenide infrared emitting diode optically coupled to an NPN silicon planar phototransistor. It is specifically characterized by a minimum current transfer ratio (CTR) of 100% with an input current of 5 mA. The device exhibits a low collector-emitter saturation voltage, with a typical value of 0.15 V and a maximum of 0.4 V. Housed in an 8-pin DIP package for high-density applications, the MCT62 provides high voltage isolation rated at 5,000 VACRMS. It is commonly used for isolating high voltage transients, eliminating ground loops, and monitoring relay contacts.

Product Highlights:

Potential Applications:

Search Keywords: MCT62

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

onsemi

Part No:

MCT62

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8541498000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
