2N7002KT1G by onsemi

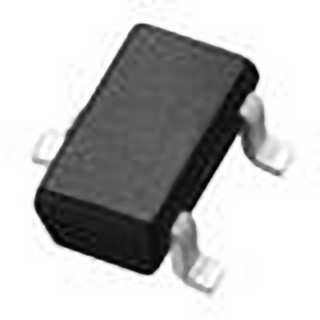

Image is representational - see manufacturer specifications
onsemi Authorized Reseller

2N7002KT1G

A single N-Channel small signal MOSFET rated for 60V and 380mA in a surface-mount SOT-23 package. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 2N7002KT1G is a single N-Channel small signal MOSFET designed for a variety of switching applications. It features a drain-to-source breakdown voltage of 60 V and supports a continuous drain current of up to 380 mA at an ambient temperature of 25°C. The device exhibits a low on-resistance, with a maximum RDS(on) of 1.6 Ω at a 10 V gate-source voltage and 2.5 Ω at 4.5 V. Housed in an ESD-protected SOT-23 package, this MOSFET is well-suited for applications including low-side load switches, level shift circuits, DC-DC converters, and portable electronics.

Search Keywords: 2N7002KT1G

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
onsemi
Part No:
2N7002KT1G
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541290095
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3000

FREQUENTLY ASKED QUESTIONS

Is 2N7002KT1G RoHS compliant?

Yes, 2N7002KT1G is RoHS compliant.

What is the lead time for 2N7002KT1G?

The standard lead time for 2N7002KT1G is approximately 43 days. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 52,000

Ships today, if you order in

On Order: 48,000   can ship 1/11/27

Minimum Order Quantity: 3000

Multiple: 3000

Factory Lead-Time 43 Weeks

Price (USD)

Qty
Unit Price
3,000
$0.0276
9,000
$0.0267
27,000
$0.0259
51,000
$0.0254
102,000
$0.0250
150,000
$0.0249
252,000
$0.0249
501,000 +
$0.0248
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
