help desk software
ALTERNATIVE PRODUCTS
RECOMMENDED REPLACEMENT

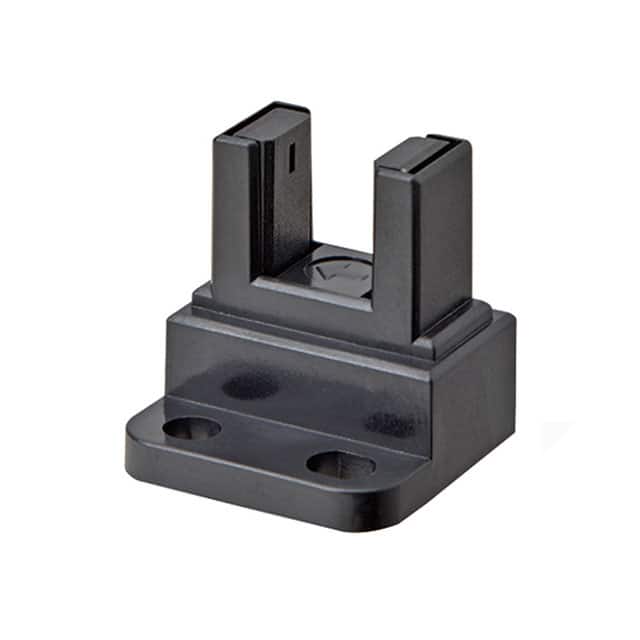

EE-SX4163-P1
EE-SX4163-P1
In Stock: 402
Minimum Order: 10
VIEW PRODUCT

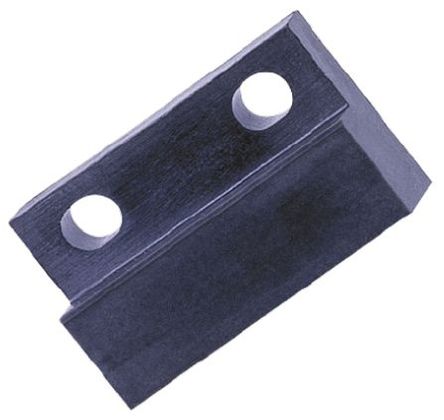

EE-SY169 by omron electronics
Image is representational - see manufacturer specifications
Omron Electronics Authorized Distributor

EE-SY169

Photointerrupter Reflective Phototransistor 4-Pin ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The OMRON EE-SY169 is a highly reliable reflective photointerrupter with a 4-pin configuration. It features a built-in phototransistor that effectively detects the presence or absence of objects with the help of an infrared light beam. With its robust construction and accurate sensing capabilities, this photointerrupter is ideal for a wide range of applications including speed sensing, object detection, and position control. It offers exceptional performance and is suitable for use in various industries such as automotive, robotics, and industrial automation.

Search Keywords: EESY169

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
EE-SY169
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541498000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Maximum Forward Current:
40 mA
Dimension:
12.5 x 6 x 8 mm
Maximum Collector Current:
20 mA
Gap Width:
N/A
Maximum Fall Time:
30000(Typ) ns
Maximum Collector Emitter Voltage:
30 V
Family:
EE-SY169
Maximum Current Transfer Ratio:
N/A
Maximum Power Dissipation:
100 mW
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is EE-SY169 discontinued?

Yes, EE-SY169 from Omron Electronics is discontinued (end-of-life March 2026). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces EE-SY169?

The recommended replacement for EE-SY169 is EE-SX4163-P1 from Omron Electronics, available from Master Electronics.

Is EE-SY169 RoHS compliant?

Yes, EE-SY169 is RoHS compliant.

What is the lead time for EE-SY169?

The standard lead time for EE-SY169 is approximately 4 days. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 90

Can Ship immediately

Minimum Order Quantity: 5

Price (USD)

Qty
Unit Price
5
$13.09
25
$12.64
50
$12.58
100
$12.40
300
$12.34
500
$12.28
1,000 +
$12.21
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
