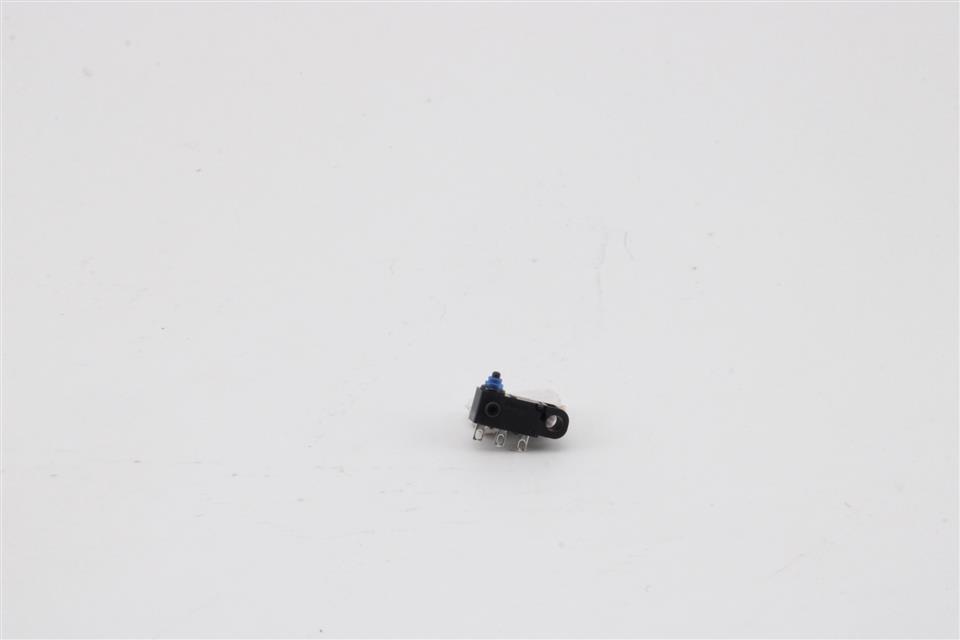

D2HW-C201H by omron electronics
Image is representational - see mfr. specs

D2HW-C201H

Omron Electronics

Switch Snap Action N.O./N.C. SPDT Pin Plunger Solder 2A 125VAC 42VDC 0.75N Screw Mount ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The OMRON ELECTRONICS part D2HW-C201H is a reliable and versatile switch designed for various applications. It features a snap action mechanism with both normally open (N.O.) and normally closed (N.C.) configurations, providing flexibility in circuit designs. The switch has a single-pole double-throw (SPDT) configuration and a pin plunger, ensuring smooth and quick actuation. It is designed for soldering onto a PCB and can handle a current rating of 2A at 125VAC or 42VDC. With a compact design and a force rating of 0.75N, the D2HW-C201H switch is easy to install and operate. It is securely mounted using screw terminals, ensuring a stable connection. Overall, the OMRON ELECTRONICS part D2HW-C201H switch is a reliable component that guarantees efficient performance in a wide range of electronic applications.

Search Keywords: D2HWC201H

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
D2HW-C201H
Alias/AKA:
D2HWC201HBYOMR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Pin Plunger
Contact Rating @ Voltage:
2@12VDC A
Maximum Movement Differential:
0.25 mm
Operating Force:
0.75 N
Termination Style:
Solder
Dimension:
18.5 x 8.3 x 14.2 mm
Body Orientation:
Straight
IP Rating:
IP67
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1,894

Ships today, if you order in

On Order: 2,500   can ship 8/5/26

Minimum Order Quantity: 10

Qty
Unit Price
10
$2.27
100
$1.93
250
$1.91
500
$1.89
1,000
$1.88
2,500
$1.87
5,000
$1.86
7,500 +
$1.85
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT
D2HWC201HBYOMR
D2HWC201HBYOMR
VIEW PRODUCT
