NHD-C12865AR-FSW-GBW by newhaven display
Image is representational - see manufacturer specifications
Newhaven Display Authorized Distributor

NHD-C12865AR-FSW-GBW

Chip on Glass- Graphic - 128 x 65 Pixels - 3.3V - Serial/Parallel - Controller:ST7565R - 30-Pin FPC

View Datasheet
RoHS Compliant
BULK Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The NHD-C12865AR-FSW-GBW is a 128 x 65 Pixels Chip on Glass. It features a STN-Gray Transflective Display with a White Backlight. Character size is / mm. It uses an Serial/Parallel Interface. Voltage requirement is 3.3V. Controller required is the ST7565R

Search Keywords: NHDC12865ARFSWGBW

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-C12865AR-FSW-GBW
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BULK
Display Format:
128 x 65 Pixels
Resolution Standard:
N/A
LCD Type:
STN
Display Mode:
Transflective
Backlight:
LED - White
Active Area:
48.61 x 24.67 mm
Dimension:
59.0 x 42.0 x 5.9 mm
Interface:
Serial/Parallel
Supply Voltage:
3.3 V
Touchscreen:
No
Operating Temperature:
-20 to 70 °C

FREQUENTLY ASKED QUESTIONS

Is NHD-C12865AR-FSW-GBW RoHS compliant?

Yes, NHD-C12865AR-FSW-GBW is RoHS compliant.

What is the lead time for NHD-C12865AR-FSW-GBW?

The standard lead time for NHD-C12865AR-FSW-GBW is approximately 18 days. In-stock quantities ship from Master Electronics.

IN STOCK: 114

Can Ship immediately

Manufacturer Stock: 2,288   can ship 9/7/26

Factory Lead-Time 18 Weeks can ship 12/30/26

Price (USD)

Qty
Unit Price
1
$28.50
5
$21.43
10
$17.69
25
$16.71
50
$16.35
100
$15.83
250 +
$15.51
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

NHDEVDEVELOPMENTBOARD

Evaluation Tool for Demonstrating OLEDs, TFTs, Character, Graphic, and COG

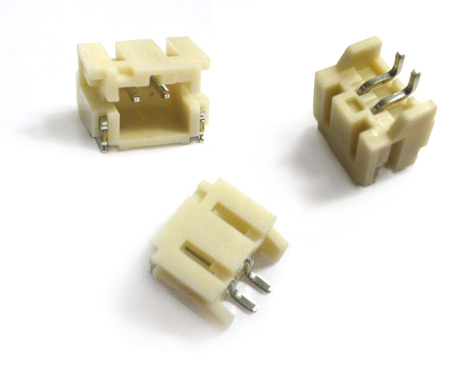

A2001WR-S-2PSMT

Wire To Board Connector - 2-Pin - 90° Wafer-SMT TYPE - 2mm Pitch - 2A - 100VAC - Ivory.

NHD-COG14-36

Various pitch SMT adapter to 2.54mm thru-holes. - 80.0 x 48.0 mm

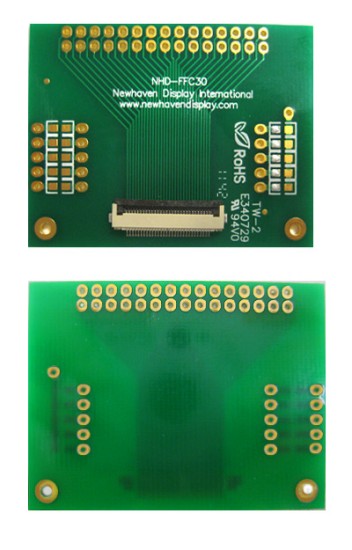

NHD-FFC30

30 pin FFC to thru hole adapter - 52 x 40 mm
