NHD-C12864WC-FSW-FBW-3V3-M by newhaven display

NHD-C12864WC-FSW-FBW-3V3-M

Newhaven Display

Chip on Glass- Graphic - 128 x 64 Pixels - 3.3V - Serial/Parallel - Controller:ST7565R - 30-Pin FPC ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NHD-C12864WC-FSW-FBW-3V3-M is a 128 x 64 Pixels Chip on Glass. It features a FSTN (+) Transflective Display with a White 3V Backlight. Character size is / mm. It uses an Serial/Parallel Interface. Voltage requirement is 3.3V. Controller required is the ST7565R

Search Keywords: NHDC12864WCFSWFBW3V3M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-C12864WC-FSW-FBW-3V3-M
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Display Format:
128 x 64 Pixels
Resolution Standard:
N/A
LCD Type:
FSTN
Display Mode:
Transflective
Data Color:
Black
Background Color:
White
Backlight:
LED - White
Active Area:
51.2 x 25.6 mm
Dimension:
86.0 x 44.0 x 5.7 mm
Interface:
Serial/Parallel
Supply Voltage:
3.3 V
Touchscreen:
No
Operating Temperature:
-20 to 70 °C

IN STOCK: 842

Ships today, if you order in

Factory Lead-Time 15 Weeks

Qty
Unit Price
1
$21.87
10
$19.58
25
$19.39
50
$19.29
100
$17.45
250
$17.37
500 +
$17.28
Log in for special pricing
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

NHDEVDEVELOPMENTBOARD

Evaluation Tool for Demonstrating OLEDs, TFTs, Character, Graphic, and COG

NHD-FFC30

30 pin FFC to thru hole adapter - 52 x 40 mm

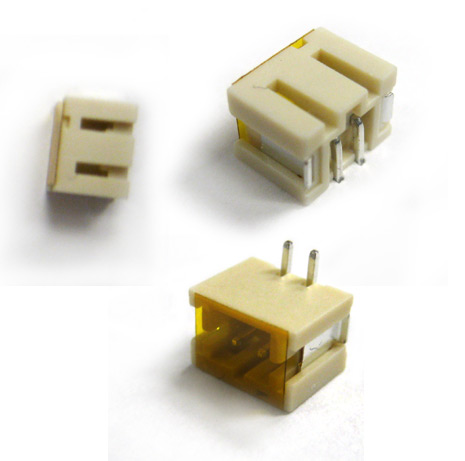

A2001WV-S-2PSMT

Wire To Board Connector - 2-Pin - 180° Wafer-SMT TYPE - 2mm Pitch - 2A - 100VAC - Ivory.

A2001WR-S-2PSMT

Wire To Board Connector - 2-Pin - 90° Wafer-SMT TYPE - 2mm Pitch - 2A - 100VAC - Ivory.

Show 2 More
