NHD-C12864A1Z-FSB-FBW-HTT by newhaven display

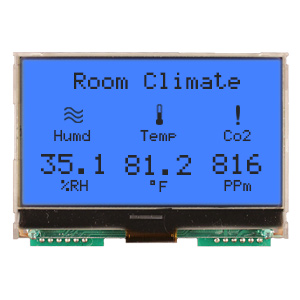

Image is representational - see mfr. specs

NHD-C12864A1Z-FSB-FBW-HTT

Newhaven Display

Chip on Glass- Graphic + Heater - 128 x 64 Pixels - 3.3V - SPI - Controller:ST-7565V - 12-Pin / PCB

Datasheet
RoHS Compliant
BULK Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NHD-C12864A1Z-FSB-FBW-HTT is a 128 x 64 Pixels Chip on Glass. It features a FSTN (+) Transflective Display with a Blue Backlight. Character size is / mm. It uses an SPI Interface. Voltage requirement is 3.3V. Controller required is the ST-7565V

Search Keywords: NHDC12864A1ZFSBFBWHTT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-C12864A1Z-FSB-FBW-HTT
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BULK
Display Format:
128 x 64 Pixels
Resolution Standard:
N/A
LCD Type:
FSTN
Display Mode:
Transflective
Data Color:
Black
Background Color:
White
Backlight:
LED - Blue
Active Area:
66.52 x 33.24 mm
Dimension:
80.0 x 54.0 x 10.2 mm
Interface:
SPI
Supply Voltage:
3.3 V
Touchscreen:
No
Operating Temperature:
-40 to +70 °C

IN STOCK: 60

Can Ship immediately

Manufacturer Stock: 8   can ship 6/22/26

Factory Lead-Time 18 Weeks can ship 10/12/26

Price (USD)

Qty
Unit Price
1
$21.75
5
$21.03
10
$20.72
25
$20.31
50
$20.00
100
$17.93
250 +
$17.56
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

NHDEVDEVELOPMENTBOARD

Evaluation Tool for Demonstrating OLEDs, TFTs, Character, Graphic, and COG
