ALTERNATIVE PRODUCTS
RECOMMENDED REPLACEMENT

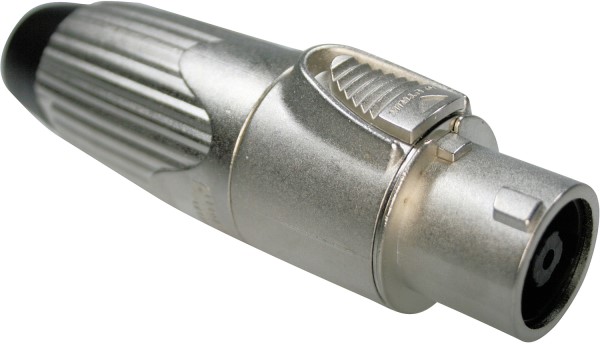

NLT8FXX
NLT8FXX
In Stock: 39
Minimum Order: 1
VIEW PRODUCT
NLT8FX by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NLT8FX

STX Series - 8-pole female cable connector, Nickel housing - chuck type strain relief - solder The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable S ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

8-pole female cable connector, Nickel housing, chuck type strain relief

The new STX Series is the next generation of 8 pole speakON connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound. The extremely rugged and durable STX Series feature an all metal housing and metal reinforced latch lock system.

Product Highlights:

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Robust and durable all metal housing
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6mm² (AWG10) wires
  • Mate with all available Speakon® products

Search Keywords: NLT8FX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NLT8FX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Type:
IP52 Speakon
Gender:
F
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Polyamide 6/6
Number of Contacts:
8
Contact Plating:
Silver
Termination Method:
N/A
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is NLT8FX discontinued?

Yes, NLT8FX from Neutrik is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces NLT8FX?

The recommended replacement for NLT8FX is NLT8FXX from NEUTRIK, available from Master Electronics.

Is NLT8FX RoHS compliant?

Yes, NLT8FX is RoHS compliant.

What is the lead time for NLT8FX?

The standard lead time for NLT8FX is approximately 3 weeks. In-stock quantities ship from Master Electronics.

  This product is not in stock and cannot be back-ordered

Tools/3D Models

Product Guides
