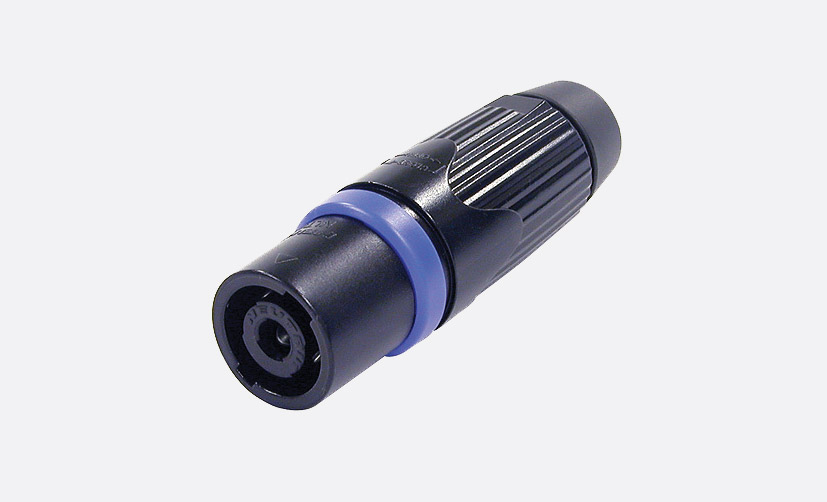

Possible Replacement
NLT4MXX-BAG
NLT4MXX-BAG
In Stock: 144
Minimum Order: 5
VIEW PRODUCT
NLT4MX-BAG by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NLT4MX-BAG

STX Series - 4 pole male cable connector - black-chrome metal housing - chuck type strain relief The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued
Certificate of Compliance

DESCRIPTION

4 pole male cable connector, black-chrome metal housing, chuck type strain relief

The new STX Series is the next generation of 4 pole speakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector.

Product Highlights:

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6mm² (AWG10) wires
  • Mate with all available Speakon products

Search Keywords: NLT4MXBAG

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NLT4MX-BAG
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
LI
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Loudspeaker Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Zinc Die Cast
Number of Contacts:
4
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued

FREQUENTLY ASKED QUESTIONS

Is NLT4MX-BAG discontinued?

Yes, NLT4MX-BAG from Neutrik is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces NLT4MX-BAG?

The recommended replacement for NLT4MX-BAG is NLT4MXX-BAG from NEUTRIK, available from Master Electronics.

Is NLT4MX-BAG RoHS compliant?

Yes, NLT4MX-BAG is RoHS compliant.

What is the lead time for NLT4MX-BAG?

The standard lead time for NLT4MX-BAG is approximately 3 days. In-stock quantities ship from Master Electronics.
