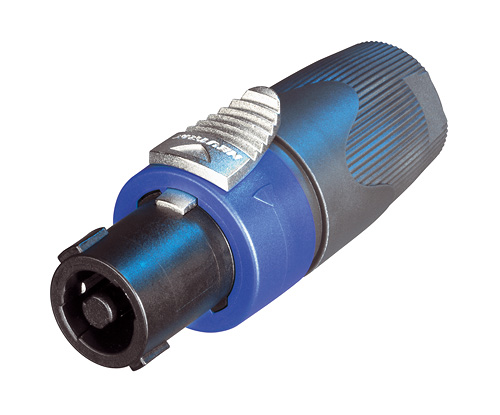

NL4FX by neutrik

NL4FX

Neutrik

SPX Series - 4 pole cable connector - chuck type strain relief - dark grey bushing The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with sc ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NL4FX is 4 pole cable connector, chuck type strain relief, dark grey bushing The NL4FX has rated current per contact of 40 A rms continuous. The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Product Highlights:

  • Current rating 40 A rms continuous
  • Up to 50 A audio signal, duty cycle 50%
  • Only 3 parts, easy to assemble
  • High impact materials - long-lasting and reliable
  • Easy and extremely precise locking system "Quick Lock"
  • Improved grip on latch
  • 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
  • Color coding possible
  • Improved screw-type termination for highest pull-out force
  • Integrated design guarantees "Made by Neutrik®"

Search Keywords: NL4FX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NL4FX
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Speakon
Gender:
F
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Polybutylene Terephthalate
Number of Contacts:
4
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

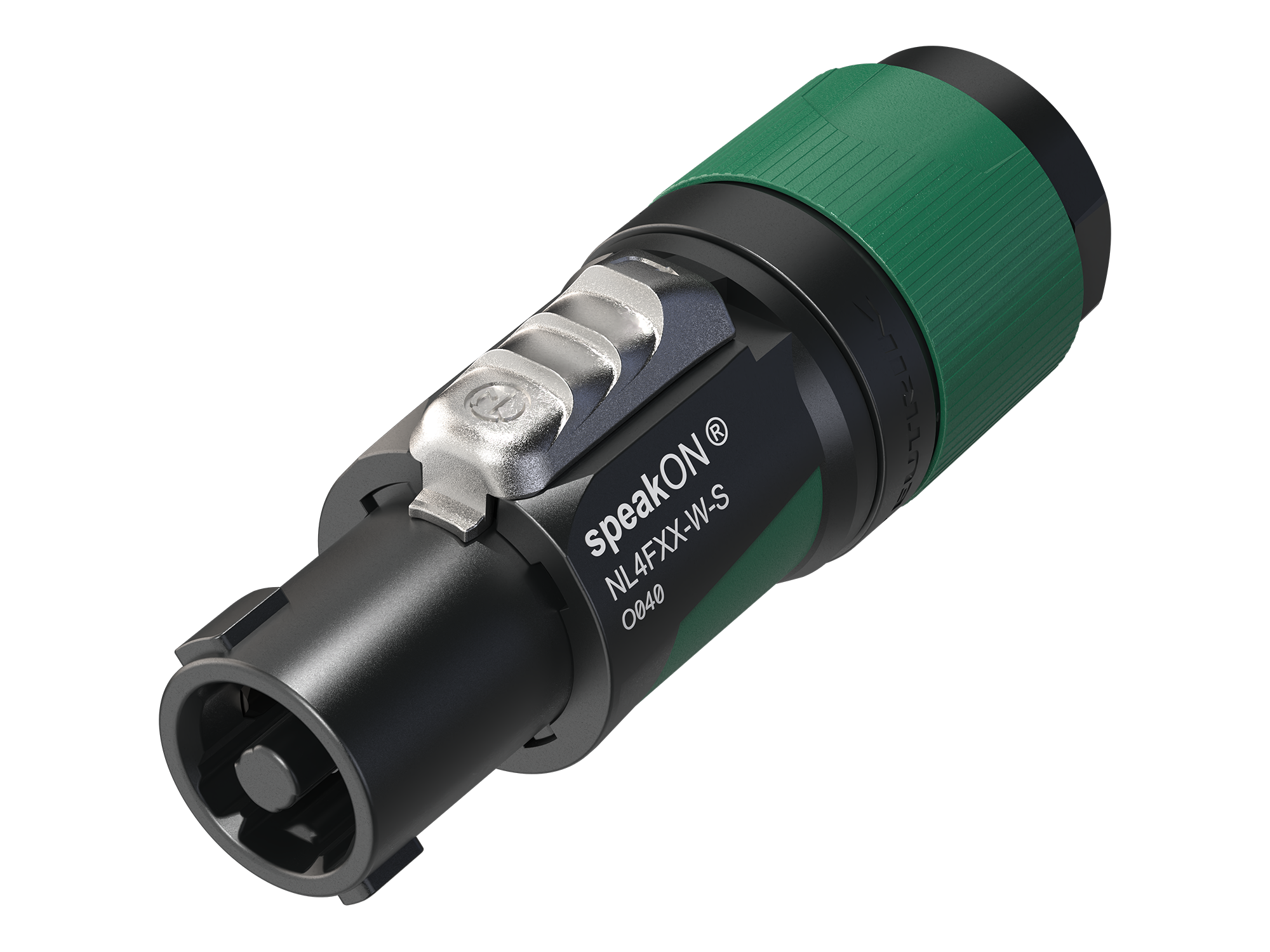

NL4FXX-W-S
NL4FXX-W-S
VIEW PRODUCT
