NJ3FD-V by neutrik

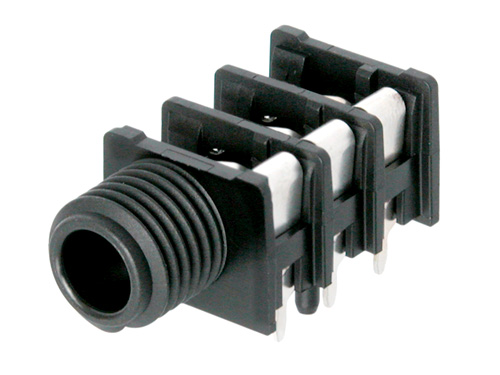

Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NJ3FD-V

1/4'' Vertical Jacks - Non-switching stereo jack (T/R/S) Vertical PCB mount panel jack in A-gauge version with gold plated contacts and unique quick fixing cap for rapid panel mounting. Separation of mechanical latch and electrical contacts offers high ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

Non-switching stereo jack (T/R/S)Vertical PCB mount panel jack in A-gauge/B-gauge version with gold plated contacts and unique quick fixing cap for rapid panel mounting. Separation of mechanical latch and electrical contacts offers high retention force combined with low insertion force.

Product Highlights:

  • Compact robust plastic housing provides mechanical and electrical reliability
  • Quick Cap Fixing System drastically reduces assembly time through snapping mounting cap
  • The retention force is provided by a special spring element, independent from contacts
  • Mates with plugs acc. to EIA RS-453

Search Keywords: NJ3FDV

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NJ3FD-V
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Type:
1/4" Stereo Jack
Gender:
F
Body Orientation:
Straight
Mounting:
Through Hole
Housing Material:
Polyamide 6/6
Number of Contacts:
3
Contact Plating:
Gold
Termination Method:
Solder
Operating Temperature:
-25 to 70 °C

FREQUENTLY ASKED QUESTIONS

Is NJ3FD-V RoHS compliant?

Yes, NJ3FD-V is RoHS compliant.

What is the lead time for NJ3FD-V?

The standard lead time for NJ3FD-V is approximately 3 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 3,192

Can Ship immediately

Minimum Order Quantity: 200

Multiple: 200

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
200
$1.226
400
$1.215
600
$1.127
1,000
$0.985
2,600
$0.956
5,000
$0.954
7,600
$0.951
10,000 +
$0.949
Supplier's Standard Package
