NC4MAH by neutrik

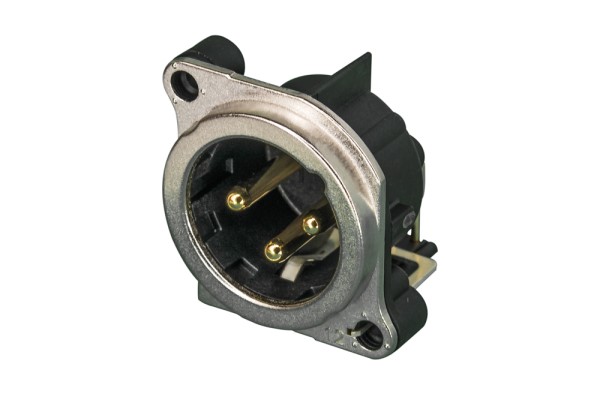

Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NC4MAH

A Series - 4 pole male XLR receptacle - grounding: separate ground contact to mating connector shell and front panel - horizontal PCB mount - color coding possible The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. Thes ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The NC4MAH is 4 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, color coding possible The NC4MAH has rated voltage of < 50 V and rated current per contact of 6 A and dielectric strength of 1,5 kVdc . The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed fork type contacts with hard gold plating and polished contact areas.

Product Highlights:

  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel latch lock
  • Polished contact areas and hard gold plating
  • Housing flammability UL94HB

Search Keywords: NC4MAH

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC4MAH
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
LI
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
XLR Connector
Gender:
M
Body Orientation:
Right Angle
Mounting:
Through Hole
Housing Material:
Polyamide 6/6
Number of Contacts:
4
Contact Plating:
AuCo Over NiP15
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C

FREQUENTLY ASKED QUESTIONS

Is NC4MAH RoHS compliant?

Yes, NC4MAH is RoHS compliant.

What is the lead time for NC4MAH?

The standard lead time for NC4MAH is approximately 3 days. In-stock quantities ship from Master Electronics.

IN STOCK: 663

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
5
$5.64
50
$4.44
100
$4.19
300
$3.84
500
$3.70
1,000
$3.52
2,500
$3.30
5,000 +
$3.29
Supplier's Standard Package
