NC3FP-B-1 by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NC3FP-B-1

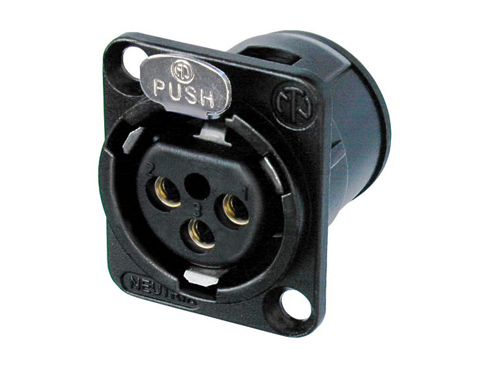

P Series - 3 pole female receptacle - solder contacts - black metal housing - gold contacts Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The NC3FP-B-1 is 3 pole female receptacle, solder contacts, black metal housing, gold contacts The NC3FP-B-1 has rated voltage of < 50 V and rated current per contact of 16 A and dielectric strength of 1,5 kVdc . Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

Product Highlights:

  • Smallest available hard wiring receptacles with large solder cups
  • Short female receptacle
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

Search Keywords: NC3FPB1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC3FP-B-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
HU
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
XLR Connector
Gender:
F
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Zinc Die Cast
Number of Contacts:
3
Contact Plating:
Gold Alloy Over Nickel
Termination Method:
Solder Cup
Operating Temperature:
-30 to 80 °C

FREQUENTLY ASKED QUESTIONS

Is NC3FP-B-1 RoHS compliant?

Yes, NC3FP-B-1 is RoHS compliant.

What is the lead time for NC3FP-B-1?

The standard lead time for NC3FP-B-1 is approximately 3 days. In-stock quantities ship from Master Electronics.

IN STOCK: 332

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 3 Weeks
