NAC3FCB by neutrik

NAC3FCB

Neutrik

powerCON 20 A - Lockable cable connector - power-out - screw terminals - grey The powerCON is a locking 3 conductor equipment AC connector with contacts for line - neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rug ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NAC3FCB is Lockable cable connector, power-out, screw terminals, grey The NAC3FCB has rated voltage of 250 V ac and rated current per contact of 20 A rms and dielectric strength of 4 kVdc / 2.8 kVac

Product Highlights:

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief

Search Keywords: NAC3FCB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NAC3FCB
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Power
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
F
Number of Contacts:
3
Termination Method:
Screw/Solder
Maximum Voltage Rating:
250 V
Maximum Current Rating:
20/Contact A
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 539

Can Ship immediately

Minimum Order: 11

Qty
Unit Price
11
$11.53
30
$10.57
50 +
$9.06
Log in for special pricing
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

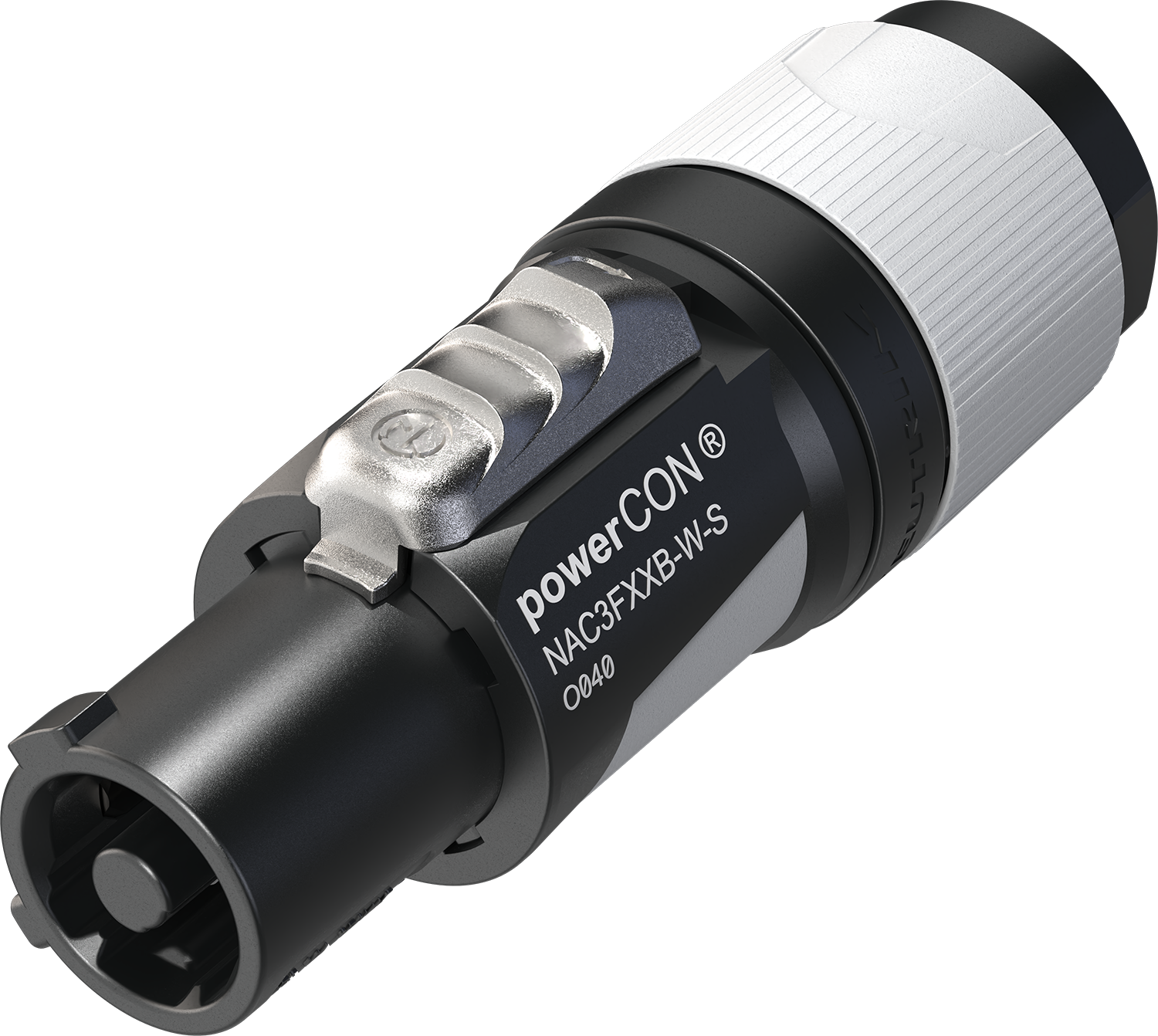

NAC3FXXB-W-S
NAC3FXXB-W-S
VIEW PRODUCT
