TP2104N3-G-P003 by microchip technology

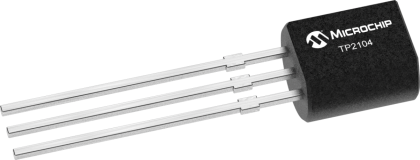

Image is representational - see mfr. specs

TP2104N3-G-P003

Microchip Technology

The TP2104N3-G-P003 is a P-Channel enhancement-mode vertical DMOS FET in a 3-lead TO-92 package. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TP2104N3-G-P003 is a low-threshold, P-Channel enhancement-mode (normally-off) vertical DMOS FET designed for high-performance switching and amplification. This transistor features a drain-to-source breakdown voltage of -40V, a low gate threshold voltage with a maximum of -2V, and a static on-state resistance as low as 6Ω at a -10V gate voltage. It offers fast switching speeds with typical turn-on and turn-off delay times of 4 ns and 5 ns respectively, combined with high input impedance and excellent thermal stability. Packaged in a lead-free, RoHS-compliant TO-92 housing, this device is ideal for applications such as logic-level interfaces, solid-state relays, analog switches, and power management.

Search Keywords: TP2104N3GP003

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
TP2104N3-G-P003
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541290095
COO:
PH
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
2000
Package Type:
REEL

IN STOCK: 1,500

Can Ship immediately

Manufacturer Stock: 26,000   can ship 6/26/26

Minimum Order Quantity: 500

Factory Lead-Time 4 Weeks can ship 7/9/26

Price (USD)

Qty
Unit Price
500
$0.670
2,000
$0.663
4,000
$0.662
6,000
$0.660
8,000
$0.658
10,000
$0.652
16,000
$0.650
26,000 +
$0.648
Reel Package
Log in for special pricing Click for Quote Price Match Request
