TC7117CPL by microchip technology

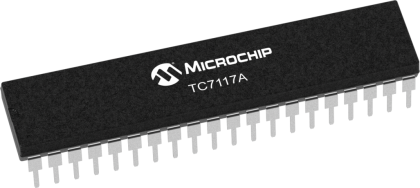

Image is representational - see manufacturer specifications
Microchip Technology Authorized Distributor

TC7117CPL

Single Channel ADC - Dual Slope 3 1/2Digit for LED - 40-Pin PDIP - Tube ...

View Datasheet Ask the Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The TC7117CPL is a high-performance single channel ADC (Analog-to-Digital Converter) featuring dual slope architecture, designed for precision measurement applications. This 3.5 digit converter is specifically tailored for LED display technology, providing clear and accurate readings with a 40-Pin PDIP package housed in a protective tube. Ideal for a wide range of industrial and consumer applications requiring reliable and efficient data conversion.

Search Keywords: TC7117CPL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
TC7117CPL
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
TH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Package Type:
TUBE
Digital Supply Support:
No
Differential Input:
Yes
Architecture:
Dual Slope
Digital Interface Type:
LED
Converter Type:
General Purpose

FREQUENTLY ASKED QUESTIONS

Is TC7117CPL RoHS compliant?

Yes, TC7117CPL is RoHS compliant.

What is the lead time for TC7117CPL?

The standard lead time for TC7117CPL is approximately 105 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 90

Ships today, if you order in

Manufacturer Stock: 700   can ship 11/27/26

On Order: 100   can ship 11/20/28

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 105 Weeks can ship 11/17/28

Price (USD)

Qty
Unit Price
10
$4.51
50
$4.14
100
$3.97
250
$3.87
500
$3.73
1,000
$3.72
2,500
$3.68
5,000 +
$3.64
Supplier's Standard Package
