PIC12F683-I/SN by microchip technology

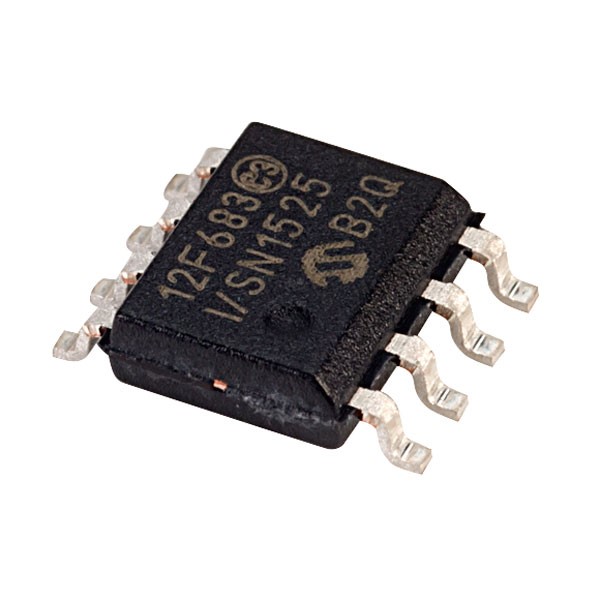

Image is representational - see manufacturer specifications
Microchip Technology Authorized Distributor

PIC12F683-I/SN

MCU 8 Bit - Flash - PIC12 Family PIC12F6xx Series Microcontrollers - 20 MHz - 3.5 KB - 128 Byte - 8 Pins. ...

View Datasheet Ask the Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PIC12F683-I/SN is a 8-pin/8-bit flash-based CMOS Microcontroller with nanoWatt technology. The low pin-count (8) PIC® flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0 to 5.5V, on-board EEPROM data memory. Standard analogue peripherals include up to 4 channels of 10-bit A/D, an analogue comparator module with a single comparator, programmable on-chip voltage reference and a standard capture/compare/PWM (CCP) module. The EEPROM data memory is readable and writable during normal operation (full VDD range). This memory is not directly mapped in the register file space. Instead, it is indirectly addressed through the special function registers.

Search Keywords: PIC12F683ISN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
PIC12F683-I/SN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542310015
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
TUBE
Program Memory Size:
3.5 KB
Program Memory Type:
Flash
Number of Programmable I/Os:
5
Operating Temperature:
-40 to 85 °C
RAM Size:
128 B
ADC Resolution:
10 bit

FREQUENTLY ASKED QUESTIONS

Is PIC12F683-I/SN RoHS compliant?

Yes, PIC12F683-I/SN is RoHS compliant.

What is the lead time for PIC12F683-I/SN?

The standard lead time for PIC12F683-I/SN is approximately 19 days. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 1,300

Ships today, if you order in

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
100
$1.74
300
$1.72
500
$1.71
1,000
$1.70
2,500
$1.69
5,000
$1.68
7,500
$1.67
10,000 +
$1.66
