MCP4922-E/ST by microchip technology

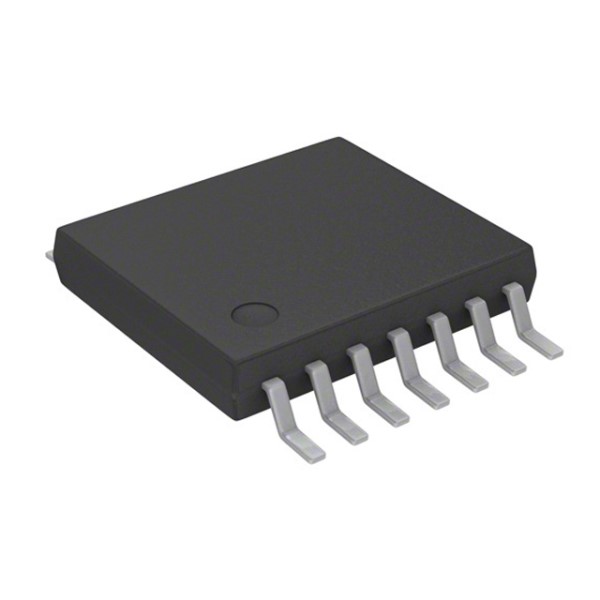

MCP4922-E/ST

Microchip Technology

DAC - 2-Channel - 12-bit - Automotive - 14-Pin TSSOP - Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MCP4922-E/ST from Microchip Technology is a high-quality 2-channel digital-to-analog converter (DAC) designed specifically for automotive applications. With a resolution of 12 bits, it ensures precise and accurate conversion of digital signals into analog voltage outputs.This versatile DAC comes in a 14-pin TSSOP package, making it compact and convenient to integrate into various automotive systems. It is built to withstand the harsh conditions of automotive environments, offering reliable performance even in extreme temperatures, vibrations, and electromagnetic interference.The MCP4922-E/ST is perfect for applications such as audio systems, motor control, and sensor calibration in automobiles. It provides two independent channels, allowing simultaneous conversion of digital signals into analog outputs.With its industry-leading technology and robust design, the MCP4922-E/ST offers automotive engineers a reliable and high-performance solution for their DAC requirements. Whether it is for audio playback or precise control of automotive systems, this DAC ensures accurate and smooth analog outputs.

Search Keywords: MCP4922EST

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP4922-E/ST
RoHS:
Yes
HTS:
8542390040
COO:
MY
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
96
Package Type:
TUBE
Family:
MCP4922
Digital Interface Type:
Serial (3-Wire, SPI, Microwire)
Dimension:
5 x 4.4 x 1 mm
Integral Nonlinearity Error:
±4(Typ) LSB
Maximum Dual Supply Voltage:
N/R
Full Scale Error:
-0.1(Typ) %FSR
Architecture:
Resistor-String
Conversion Rate:
N/A
Digital Supply Support:
No
Converter Type:
General Purpose
  Different packaging options available.  See Alternatives

IN STOCK: 869

Ships today, if you order in

Manufacturer Stock: 2,886   can ship 12/1/25

Minimum Order: 10

Factory Lead-Time 7 Weeks can ship 1/8/26

Qty
Unit Price
10
$3.28
96
$2.59
192
$2.58
288
$2.56
576
$2.55
1,056 +
$2.54
