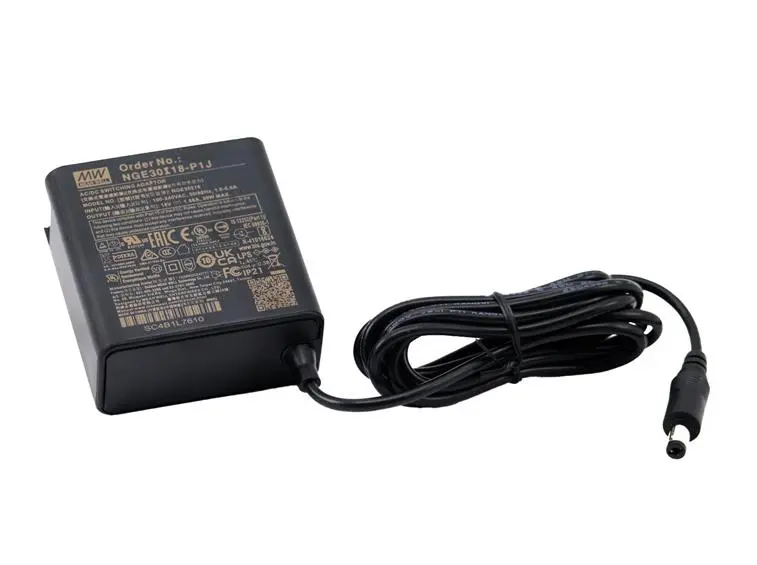

NGE30I18-P1J
NGE30I18-P1J
In Stock: 0
Minimum Order: 1
VIEW PRODUCT
GE30I18-P1J by mean well
Image is representational - see manufacturer specifications
MEAN WELL Authorized Distributor

GE30I18-P1J

AC/DC Adapter - Wall Mount - 30 Watts: 18V @ 1.66A - Lvl VI ++ ORDER AC BLADES ++

View Datasheet
RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

AC/DC Adapter - Wall Mount - 30 Watts: 18V @ 1.66A - Lvl VI ++ ORDER AC BLADES ++

Search Keywords: GE30I18P1J

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
MEAN WELL
Part No:
GE30I18-P1J
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BOX
Input/Output Type:
AC/DC5431
Type:
Regulated-Switching
Style:
Interchangeable WallMount
Output Type:
Fixed5445
Number of Outputs:
15441
Power:
30 W
Output Voltage:
18 VDC
Output Current:
1.66 A
Ripple & Noise:
180 mV
Grade:
Commercial
MOPP:
Not App
DOE Efficiency Level:
VI
CoC Tier:
No
Safety Class:
II
Safety Approvals:
CCC, CE, cUL, GS, RCM, TUV, UL
Efficiency:
87(Typ) %
Output Connector Type:
Barrel - Female
Output Connector Polarity:
Center Positive5443
Output Connector Diameters:
2.1x5.5 mm
Output Connector Angle:
Straight
Output Cord Length:
1.5m (59.1in)
AC Input Voltage:
90 to 264
Minimum AC Input Voltage:
90
Maximum AC Input Voltage:
264
Input Frequency:
47 to 63 Hz
Line Regulation:
1.00 %
Load Regulation:
3.00 %
Overload Protection:
Yes
Over Voltage Protection:
Yes
Short Circuit Protection:
Yes
Thermal Protection:
No
Operating Temperature:
-10 to 50 °C
Power Indicator:
Yes5452
Minimum Load (Amps):
0
Minimum Isolation Voltage:
42425438VDC
Input Connector Type:
Interchangeable-Order Separately
Dimensions L x W x H:
81.0 x 43.0 x 40.5 mm
Dimensions L x W x H(in):
3.19 x 1.70 x 1.60 in
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is GE30I18-P1J discontinued?

Yes, GE30I18-P1J from Mean Well is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces GE30I18-P1J?

The recommended replacement for GE30I18-P1J is NGE30I18-P1J from MEAN WELL, available from Master Electronics.

Is GE30I18-P1J RoHS compliant?

Yes, GE30I18-P1J is RoHS compliant.

What is the lead time for GE30I18-P1J?

The standard lead time for GE30I18-P1J is approximately 19 days. In-stock quantities ship from Master Electronics.
