PSR-28N08A-JQ by mallory sonalert
Image is representational - see manufacturer specifications
Mallory Sonalert Authorized Distributor

PSR-28N08A-JQ

Speakers Ferrite 0.5W 89dBA Round ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

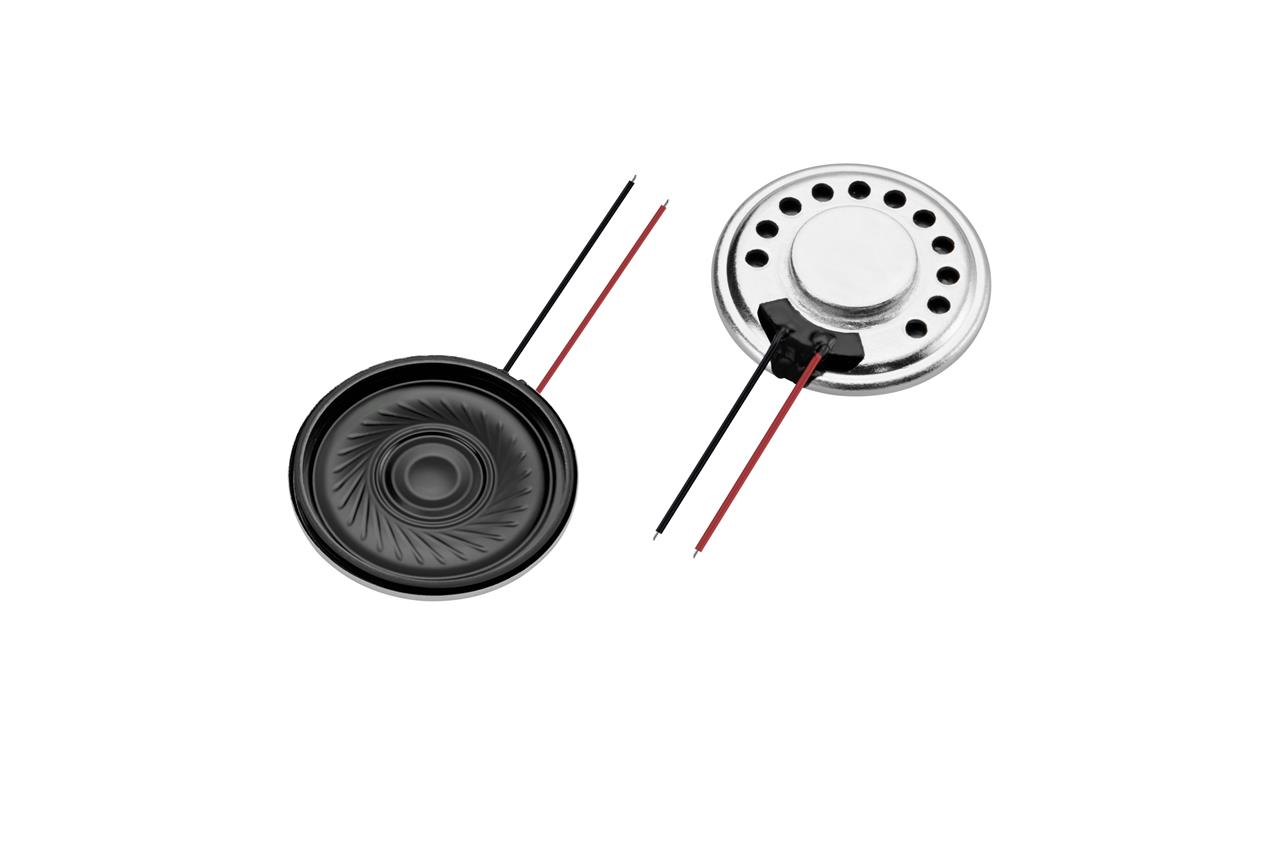

The PSR-28N08A-JQ is a compact piezoelectric speaker manufactured by Mallory Sonalert Products Inc., designed for audio signaling and alert applications. It features an 8 O voice coil impedance (±15% at 800 Hz / 1.0 V), a rated input power of 0.25 W with a maximum input of 0.5 W, and a lowest resonance frequency of 700 Hz (±20%). The speaker delivers an output sound pressure level of 89 dB (±3 dB) at 1 W, 1 M across multiple frequencies (1 kHz, 1.2 kHz, 1.5 kHz, and 8 kHz), with a frequency range extending from 700 Hz to 8000 Hz. It employs a ferrite magnet (Ø 9.5 × 1.5 mm), mylar core material, and a metal frame, operating reliably across -25 °C to +50 °C. This compact design is ideal for embedded audio alerts, notification systems, and consumer electronics requiring space-efficient sound generation.

Search Keywords: PSR28N08AJQ

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Mallory Sonalert
Part No:
PSR-28N08A-JQ
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8518298000
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Dimension:
28 mm
Cone Material:
Mylar

FREQUENTLY ASKED QUESTIONS

Is PSR-28N08A-JQ RoHS compliant?

Yes, PSR-28N08A-JQ is RoHS compliant.

What is the lead time for PSR-28N08A-JQ?

The standard lead time for PSR-28N08A-JQ is approximately 24 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 25

Can Ship immediately

On Order: 1,500   can ship 2/1/27

Minimum Order Quantity: 10

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
10
$2.08
100
$1.50
250
$1.36
500
$1.35
1,000
$1.16
2,500
$1.15
5,000
$1.04
7,500 +
$1.03
