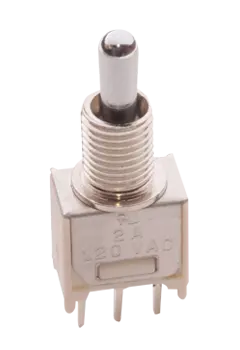

T105LH9AVBE by littelfuse / c-k
Image is representational - see manufacturer specifications
Littelfuse / C&K Authorized Distributor

T105LH9AVBE

Subminiature Toggle Switch ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The T105LH9AVBE is a subminiature toggle switch featuring vertical actuation and single-pole double-throw (SPDT) switching function with right-angle PC thru-hole termination. This compact switch is designed for hand-held telecommunications, instrumentation, and medical equipment applications where space is critical. The switch operates over a temperature range of -30°C to 85°C and provides contact resistance below 20 mO typical at 2-4 V DC with 100 mA, ensuring reliable low-level switching performance. With an insulation resistance of 10? O minimum and dielectric strength of 1000 Vrms at sea level, the device delivers robust electrical isolation. The switch supports 30,000 electrical life cycles and is RoHS compliant, making it suitable for modern electronic applications requiring compact, reliable switching solutions.

Search Keywords: T105LH9AVBE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse / C&K
Part No:
T105LH9AVBE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650
COO:
VN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
80
Package Type:
TRAY
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
(On) Off (On)
Contact Rating @ Voltage:
0.4@20VAC 20VDC A
Actuator Style:
Round Lever
Mounting:
PC Mount with Bracket
Thread Size:
N/R
Body Orientation:
Vertical Right Angle
Terminal Type:
PC Pins
Dimension:
6.1 x 27.24 x 8.77 mm
Operating Temperature:
-30 to 85 °C

FREQUENTLY ASKED QUESTIONS

Is T105LH9AVBE RoHS compliant?

Yes, T105LH9AVBE is RoHS compliant.

What is the lead time for T105LH9AVBE?

The standard lead time for T105LH9AVBE is approximately 8 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 417

Can Ship immediately

MOQ for In Stock Qty: 10

MOQ for out of Stock Qty: 10

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
10
$18.15
25
$18.11
50
$18.06
80
$18.01
160
$11.09
240
$8.77
320 +
$8.60
Supplier's Standard Package
Log in for special pricing
