PTS525SK08SMTR2LFS by littelfuse/c-k

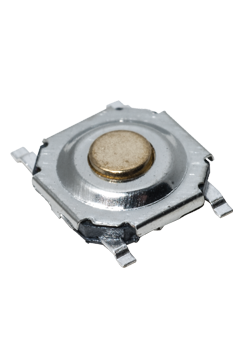

Image is representational - see mfr. specs

PTS525SK08SMTR2LFS

Littelfuse/C&K

Microminiature Tact Switch for SMT ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

PTS525SK08SMTR2LFS is a microminiature surface mount tact switch from the PTS 525 Series, designed for momentary action switching in compact applications. It features a 0.8 mm actuator height, an operating force of 260 gf ± 50 gf, and a travel distance of 0.25 ± 0.2 mm. The switch offers SPST normally open contact arrangement with a maximum voltage rating of 15 VDC and maximum current of 20 mA. With an operating life of 200,000 cycles and an operating temperature range of -20°C to 70°C, this ruggedized switch is suitable for infrared reflow soldering. Typical applications include consumer products, instrumentation, and remote controls where space-saving and reliable tactile feedback are required.

Search Keywords: PTS525SK08SMTR2LFS

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
PTS525SK08SMTR2LFS
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
CN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1
Package Type:
Reel
Dimension:
5.25 x 6.4 x 0.8 mm
Mounting:
PCB Surface Mount
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
2.55 N
Contact Rating @ Voltage:
0.05@12VDC A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
Gull Wing
Seal Location:
N/A

IN STOCK: 50,688

Ships today, if you order in

MOQ for In Stock Qty: 50

MOQ for out of Stock Qty: 50

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
50
$0.6382
250
$0.6287
500
$0.6192
1,250
$0.6100
2,500
$0.3754
3,750
$0.2971
5,000 +
$0.2912
