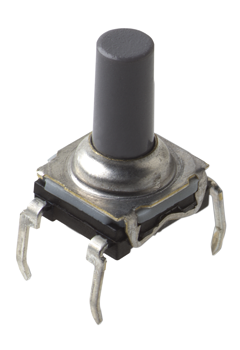

KSA1M511LFT
KSA1M511LFT
In Stock: 3,822
Minimum Order: 300
VIEW PRODUCT
KSA1M511LFTR by littelfuse / c-k
Image is representational - see manufacturer specifications
Littelfuse / C&K Authorized Distributor

KSA1M511LFTR

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 7N Thru-Hole Automotive Bulk ...

View Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

KSA1M511LFTR is a sealed tactile switch from the KSA & KSL Series designed for automatic or manual insertion in automotive, industrial, and telecommunication applications. The switch features a 5 N (500 grams) actuation force with 0.7 ± 0.2 mm travel to make, rated for 100,000 operations, and incorporates double overmolding on terminals with cambered design for self-retention. It provides SPST normally-open contact arrangement with IP60 sealing, silver contacts rated at 1 VA maximum power and 32 VDC maximum voltage, and PC pins with optional ground terminal. The RoHS-compliant design with top or side actuation capability and large choice of interchangeable caps makes it suitable for applications requiring reliable, sealed switching in harsh environments.

Search Keywords: KSA1M511LFTR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse / C&K
Part No:
KSA1M511LFTR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
5000
Package Type:
Bulk
Dimension:
7.4 x 9 x 4.7 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
7 N
Contact Rating @ Voltage:
1 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A

FREQUENTLY ASKED QUESTIONS

What replaces KSA1M511LFTR?

The recommended replacement for KSA1M511LFTR is KSA1M511LFT from Littelfuse / C&K, available from Master Electronics.

Is KSA1M511LFTR RoHS compliant?

Yes, KSA1M511LFTR is RoHS compliant.

What is the lead time for KSA1M511LFTR?

The standard lead time for KSA1M511LFTR is approximately 9 days. In-stock quantities ship from Master Electronics.

IN STOCK: 6,920

Ships today, if you order in

MOQ for In Stock Qty: 200

MOQ for out of Stock Qty: 200

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
200
$0.9434
500
$0.9411
1,000
$0.9387
2,500
$0.9364
5,000
$0.4957
7,500
$0.3488
10,000 +
$0.3419
Supplier's Standard Package
