DESCRIPTION

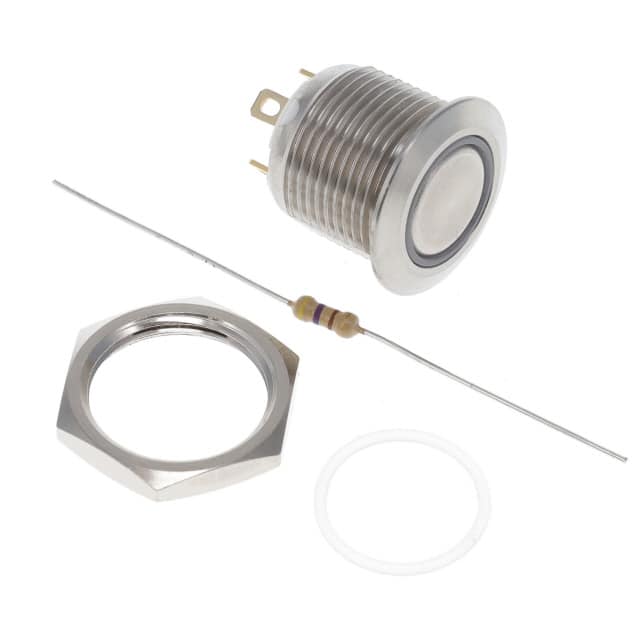

The ATP16SL1612M4SA04G is an anti-vandal sealed pushbutton switch from the ATP16 Series designed for harsh industrial and security applications. This switch features IP67 sealing, a stainless steel double-D bushing with natural anodization, a standard flat actuator with ring indicator, and green LED illumination at 12V DC. The switch is rated for 2A at 36 VDC with a contact arrangement of normally open (N.O.) and SPST function, offering 1,000,000 operating cycles in momentary mode with a total travel of 2.0 mm and operating force of 4.5 ± 1.5 N. It includes a threaded front panel mount (M16×1.0) with a torque specification of 11.5 kgf/cm, dielectric strength of 2,000 V RMS, and insulation resistance of 1,000 MO minimum at 500 VDC. This switch is ideal for alarm systems, security devices, intercom push-to-talk applications, vending machines, and industrial instruments where durability and reliability are essential.
Search Keywords: ATP160004
SPECIFICATIONS
IN STOCK: 46
Can Ship immediately
Minimum Order Quantity: 5
Factory Lead-Time 11 Weeks
Datasheet
