1101M2S3AV2QE2 by littelfuse / c-k

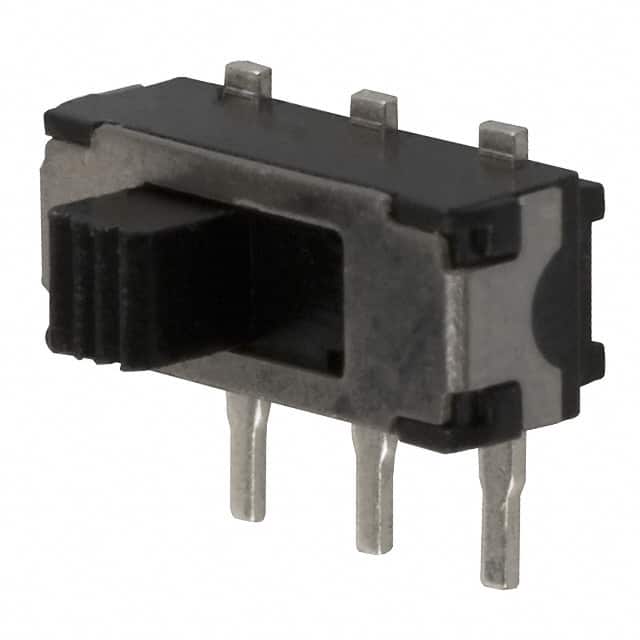

Image is representational - see manufacturer specifications
Littelfuse / C&K Authorized Distributor

1101M2S3AV2QE2

Miniature Slide Switch ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 1101M2S3AV2QE2 is a miniature slide switch from C&K Components' 1000 Series, designed as a single-pole double-throw (SPDT) configuration with vertical right-angle PC thru-hole termination featuring 150° pitch. This switch features an epoxy terminal seal compatible with bottom-wash cleaning and operates reliably over a temperature range of -30°C to 65°C. The contact resistance is below 10 mO typical at 2-4 V DC with 100 mA, and the switch supports 100,000 make-and-break cycles at full load with B, K, or P contact material. The device is ideal for test and measurement equipment, telecommunications, and computer peripherals where compact, reliable switching is required.

Search Keywords: 1101M2S3AV2QE2

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse / C&K
Part No:
1101M2S3AV2QE2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
80
Package Type:
TRAY
Mounting:
PCB Through Hole
Body Orientation:
Vertical Right Angle
Actuator Style:
Side Slide
Pole Throw Configuration:
SPDT
Switch Configuration:
On None On
Contact Rating @ Voltage:
6@120VAC 28VDC A
Contact Plating:
Silver
Operating Temperature:
-30 to 65 °C
Termination Style:
PC Pins
Dimension:
6.6 x 23.42 x 12.7 mm

FREQUENTLY ASKED QUESTIONS

Is 1101M2S3AV2QE2 RoHS compliant?

Yes, 1101M2S3AV2QE2 is RoHS compliant.

What is the lead time for 1101M2S3AV2QE2?

The standard lead time for 1101M2S3AV2QE2 is approximately 10 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 96

Can Ship immediately

On Order: 480   can ship 11/11/26

Minimum Order Quantity: 5

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
5
$9.22
80
$5.83
160
$5.61
320
$5.33
560
$4.98
1,040
$4.91
2,560
$4.89
5,040 +
$4.88
Supplier's Standard Package
