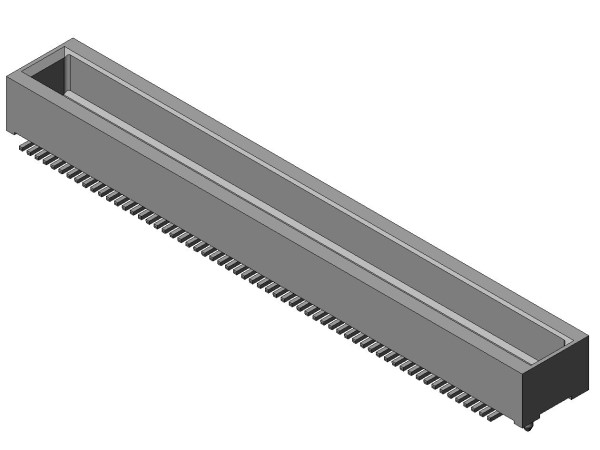

WR-120PB-VF-N1 by jae electronics
Image is representational - see mfr. specs

WR-120PB-VF-N1

JAE Electronics

The WR-120PB-VF-N1 is a 120-pin, 0.5mm pitch, vertical SMT board-to-board pin header with positioning bosses. ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The WR-120PB-VF-N1 is a vertical, pin-side board-to-board connector from the WR series, featuring 120 pins on a 0.5mm pitch. Designed for SMT applications, it includes positioning bosses for accurate board placement and is rated for 0.5A and 50V AC/DC. This connector system supports nine different vertical stacking heights from 4.0mm to 12.0mm, offering significant design flexibility. Its dual mating contact design ensures a reliable connection with a durability of up to 500 mating cycles, making it suitable for high-density interconnects in various electronic devices.

Search Keywords: WR120PBVFN1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
JAE Electronics
Part No:
WR-120PB-VF-N1
Unit of Measure:
Per Each
RoHS:
Yes
COO:
JP
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1
Package Type:
Reel

IN STOCK: 25

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
5
$13.41
25
$11.65
50
$11.21
100
$10.46
250
$9.80
500
$9.34
1,000 +
$9.05
Log in for special pricing Click for Quote Price Match Request
