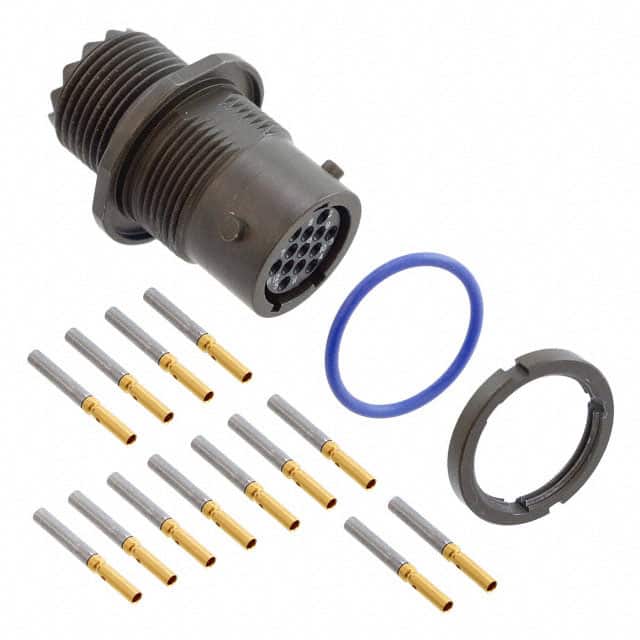

Image is representational - see mfr. specs
155356-0000
ITT CANNONConn Bayonet Coupling PIN 26 POS Crimp ST Jam Nut 26 Terminal 1 Port
RoHS Compliant
Certificate of Compliance Guarantee
DESCRIPTION
Conn Bayonet Coupling PIN 26 POS Crimp ST Jam Nut 26 Terminal 1 Port
Search Keywords: 1553560000
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
155356-0000
Alias/AKA:
MKJ3B7F10-26PN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
MX
Supplier Standard Pack:
1
Contact Arrangement:
23 Contacts Size 26
Contact Resistance:
8 Milliohms Maxim um
Class:
Environmental Plug and ReceptacleThreaded Accessory Attachment
Contact Size / Spacing:
#23 / 0.076 inches (1.9 mm)
Gender:
Pin, Crimp, Removable
Series:
Bayonet Coupling
Plating:
Aluminum/Electroless Nickel
Wire Acomodiation:
#22 - #28 AWG
Shock:
300 g′ (MKJ1) 50 g′ (MKJ0 and MKJ4) in Accordance with MIL-STD-1344 Method 2004, Condition E
Insulator Resistance:
5000 Megaohms Minim um
Polarization:
Normal (150° 210°)
Emi Shielding Effectiveness:
40dB Attenuation, 100 MHz to 1000 MHz
Current Rating:
5 Amps Maxim um
Operating Temperature:
-55°/+150 °
Vibration:
20 g′ in Accordance with MIL-STD-1344 Method 2005, Condition IV
Voltage Rating:
500 VAC RMS Sea Level
Shell Style:
Jam Nut Receptacle
Shell Size:
7
IN STOCK: 0
MOQ for out of Stock Qty: 7
Factory Lead-Time 24 Weeks
Price (USD)
Qty
Unit Price
7
$393.25
13
$224.20
19
$161.93
25
+
$158.69
Datasheet
