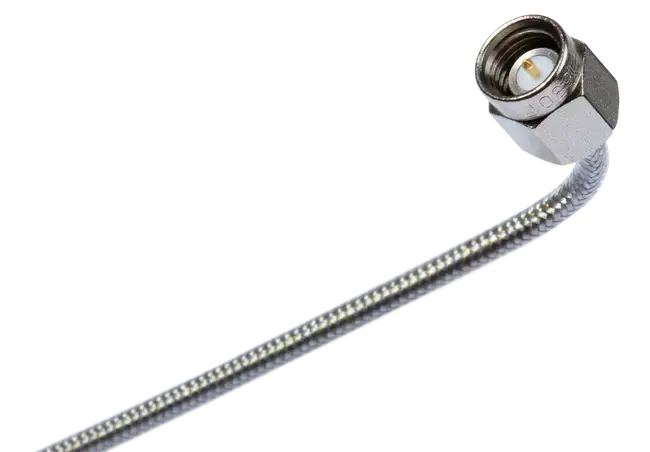

MINIBEND-LR-8 by huber+suhner
Image is representational - see manufacturer specifications
HUBER+SUHNER Authorized Distributor

MINIBEND-LR-8

The 80337449 is a ruggedized, low-loss 50 Ohm coaxial cable assembly terminated with SMA male connectors, designed for applications up to 26.5 GHz. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 80337449, known as the MINIBEND LR-8, is a high-performance, flexible coaxial cable assembly measuring 8 inches (203.2 mm) in length. It operates with a 50 Ω impedance up to a maximum frequency of 26.5 GHz and is terminated with straight SMA male plugs on both ends. The cable exhibits excellent electrical performance, with a maximum VSWR of 1.4 and an insertion loss of 1.03 dB at its highest rated frequency. Built for durability with a low loss PTFE dielectric, it can operate in temperatures from -55 °C to 125 °C. This assembly serves as a direct, flexible replacement for 086 size semi-rigid cables, making it ideal for high-density RF systems and test environments.

Search Keywords: MINIBENDLR8

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
HUBER+SUHNER
Part No:
MINIBEND-LR-8
Alias/AKA:
80337449
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544200000
COO:
CR
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1

FREQUENTLY ASKED QUESTIONS

Is MINIBEND-LR-8 RoHS compliant?

Yes, MINIBEND-LR-8 is RoHS compliant.

What is the lead time for MINIBEND-LR-8?

The standard lead time for MINIBEND-LR-8 is approximately 16 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 10

Can Ship immediately

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$84.30
5
$81.04
10
$69.87
20
$67.99
50
$53.44
100 +
$47.96
