BZ-7RST by honeywell

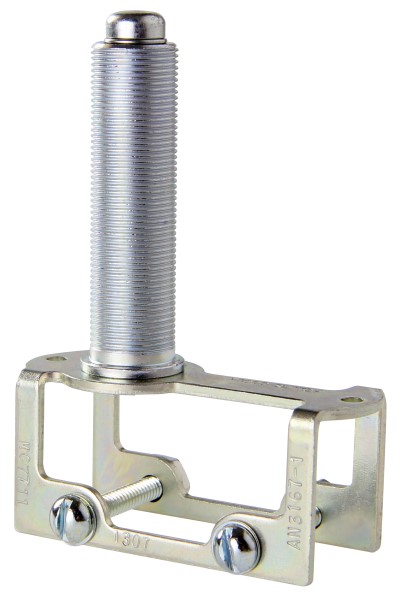

Image is representational - see manufacturer specifications
Honeywell Authorized Distributor

BZ-7RST

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw (SPDT), 15 A 125/250 Vac, ENEC 16 A 250 Vac, 11,9 mm [0.470 in] Threaded Bushing with 8,3 mm [0.326 in] Diameter Hardened Steel Additional Overtravel Plunger, Highest Operating Force in BZ Series, Binding Head Combination Screw Termination with Integral Lock Washers, Mounting Holes will Accept Pins or Screws, Bushing Hardware Furnished Unassembled, UL, CE, CSA, ENEC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued
Certificate of Compliance

DESCRIPTION

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw (SPDT), 15 A 125/250 Vac, ENEC 16 A 250 Vac, 11,9 mm [0.470 in] Threaded Bushing with 8,3 mm [0.326 in] Diameter Hardened Steel Additional Overtravel Plunger, Highest Operating Force in BZ Series, Binding Head Combination Screw Termination with Integral Lock Washers, Mounting Holes will Accept Pins or Screws, Bushing Hardware Furnished Unassembled, UL, CE, CSA, ENEC

Product Highlights:

  • Accepted world-wide standard "Large Basic" switch
  • Low operating force and differential travel
  • Long mechanical life up to 20,000,000 cycles at 95% survival
  • Elongated mounting hole for easier, more accurate mounting
  • Current rating ranges from 15 A to 25 A
  • Choice of actuation, termination and operating characteristics

Potential Applications:

  • Irrigation systems
  • Semi-trailer trucks
  • Timing devices
  • Office equipment
  • Test instruments
  • Medical/dental equipment
  • HVAC equipment
  • Manually operated devices
  • Valves

Search Keywords: BZ7RST

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
BZ-7RST
Alias/AKA:
AN3215-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509055
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Overtravel Plunger
Contact Rating @ Voltage:
186.42 A
Maximum Movement Differential:
0.13 mm
Operating Force:
7.78 N
Termination Style:
Screw
Dimension:
49.28 x 17.45 x 38.1 mm
Body Orientation:
Straight
IP Rating:
N/A
Life Cycle:
Discontinued

FREQUENTLY ASKED QUESTIONS

Is BZ-7RST discontinued?

Yes, BZ-7RST from Honeywell is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

Is BZ-7RST RoHS compliant?

Yes, BZ-7RST is RoHS compliant.

What is the lead time for BZ-7RST?

The standard lead time for BZ-7RST is approximately 25 weeks. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 19

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$109.25
2
$105.78
5 +
$96.28
