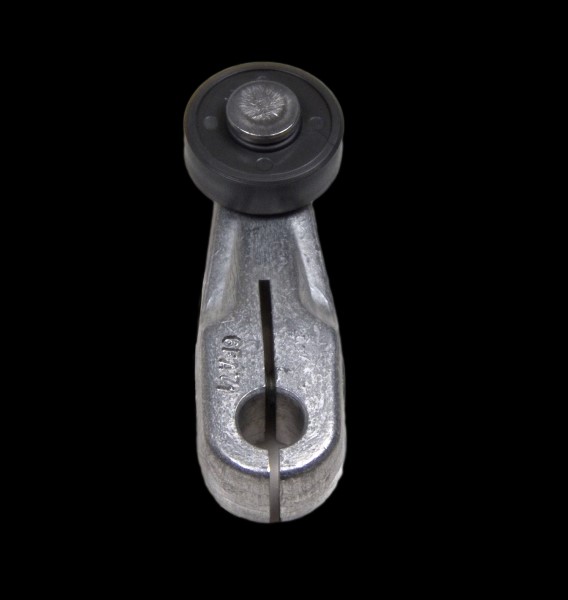

Image is representational - see manufacturer specifications
Honeywell Authorized Distributor

1LS243

MICRO SWITCH™ Medium-Duty Limit Switches: LS Series Enclosed Switch, High Temperature Construction (250° F), Side Rotary with 1.5 in Fixed Length Lever, Steel Roller, 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break, 0.5 in - 14NPT Conduit, Compact/Non-Plug-in ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The HONEYWELL 1LS243 is a MICRO SWITCH™ Medium-Duty Limit Switch from the LS Series, designed for high temperature environments up to 250°F. This enclosed switch features a side rotary design with a 1.5 inch fixed length lever and a steel roller for precise and reliable operation. It is equipped with a 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break mechanism for efficient switching. The switch comes with a 0.5 inch - 14NPT conduit for easy installation and is compact and non-plug-in for space-saving solutions. Ideal for a variety of industrial applications requiring durability and performance in challenging conditions.

Product Highlights:

  • Mode of operation is field adjustable
  • NEMA 1, 3, 4, 6, and 13
  • Wide choice of heads and actuators
  • Variety of operating characteristics
  • Captive screws
  • UL and CSA approved parts available

Potential Applications:

  • Machine tools
  • Conveyors
  • Material handling
  • Metal fabrication equipment
  • Lift trucks

Search Keywords: 1LS243

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1LS243
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Type:
Enclosed
Actuator Style:
Side Rotary
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Operating Force:
N/A
Dimension:
39.88 x 57.1 x 93.98 mm
Maximum Current Rating:
0.8@115VDC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 3, 4, 6, 13
Body Orientation:
Right Angle

FREQUENTLY ASKED QUESTIONS

Is 1LS243 RoHS compliant?

Yes, 1LS243 is RoHS compliant.

What is the lead time for 1LS243?

The standard lead time for 1LS243 is approximately 17 days. In-stock quantities ship from Master Electronics.

IN STOCK: 3

Ships today, if you order in

Factory Lead-Time 17 Weeks
