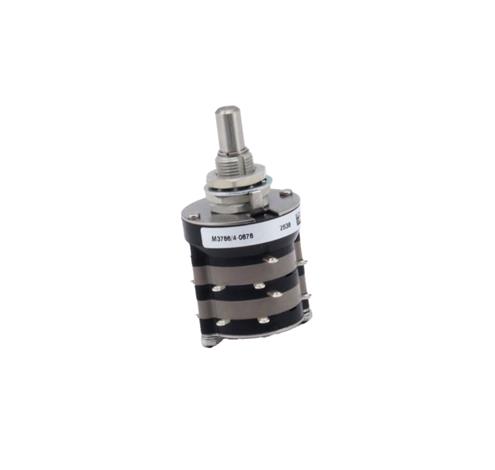

M3786/4-0876

The M3786/4-0876 is a multi-deck rotary switch qualified to military specification MIL-DTL-3786/4 for high-reliability applications. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The M3786/4-0876 is a military-qualified, multi-deck rotary switch designed for robust and reliable operation in demanding environments. As a switch qualified under MIL-DTL-3786/4 Style SR04, it features various configurations including single shaft, concentric shaft, or add-a-pot styles with solder lug terminals. Built with diallyl phthalate materials and silver-plated contacts, it is qualified for operating temperatures ranging from -65°C to +125°C. The switch is designed to carry 10 amps continuously and has a mechanical life expectancy of 100,000 cycles, making it ideal for military, aerospace, and other high-reliability systems where performance under shock, vibration, and extreme temperatures is critical.

Search Keywords: M378640876

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
M3786/4-0876
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Number of Positions:
5
Pole Throw Configuration:
SP5T
Actuator Length:
11.1 mm
Dimension:
29.51 x 31.07 x 57.02 mm
Actuator Style/Diameter:
Flatted Shaft/6.35
Mounting:
Panel Mount
Body Orientation:
Straight
Terminal Type:
Solder
Angle of Throw:
45 °
Contact Rating @ Voltage:
5@115VAC A

FREQUENTLY ASKED QUESTIONS

Is M3786/4-0876 RoHS compliant?

Yes, M3786/4-0876 is RoHS compliant.

What is the lead time for M3786/4-0876?

The standard lead time for M3786/4-0876 is approximately 27 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 8   can ship 12/14/26

MOQ for out of Stock Qty: 3

Factory Lead-Time 27 Weeks

Price (USD)

Qty
Unit Price
1
$141.40
3
$141.05
5
$126.94
8
$111.08
10 +
$108.86
Log in for special pricing

Tools/3D Models

Product Guides
