093111-4-03N by grayhill

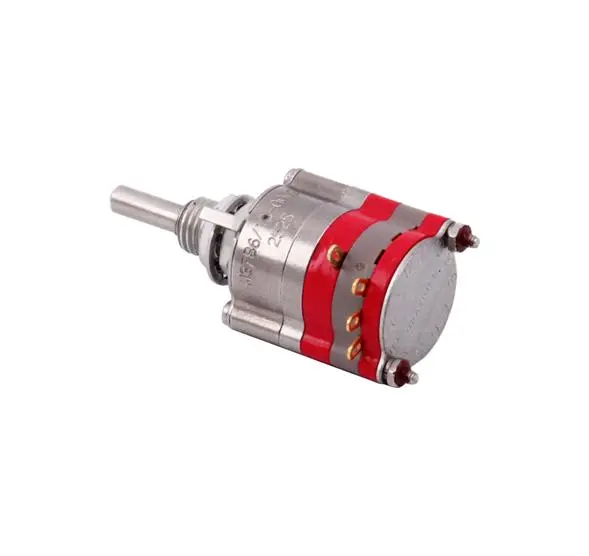

Image is representational - see manufacturer specifications
Grayhill Authorized Distributor

093111-4-03N

Switch Rotary 4P3T 3 Flatted Shaft Solder Lug ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 093111-4-03N is a spring return rotary switch designed for special function applications including hold-to-test, hold-to-calibrate, and other momentary control scenarios. This switch features 4 decks with non-shorting contacts and 3 positions per pole, providing reliable momentary operation that requires rotational force to maintain contact at momentary positions. The switch is rated for 10,000 cycles of operation and has a 30° angle of throw, with a dimension A of 1.764 inches (44.81 mm) and dimension B of 0.062 inches (1.57 mm) stud projection. The spring mechanism automatically returns the contact to a normal detent position when rotational force is released, making it ideal for instrumentation, calibration systems, and test equipment where momentary switching is required.

Search Keywords: 093111403N

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
093111-4-03N
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Positions:
3
Pole Throw Configuration:
4P3T
Actuator Length:
N/A
Dimension:
N/A
Actuator Style/Diameter:
Flatted Shaft
Mounting:
Panel Mount
Body Orientation:
Straight
Terminal Type:
Solder
Angle of Throw:
30 °
Contact Rating @ Voltage:
N/A

FREQUENTLY ASKED QUESTIONS

Is 093111-4-03N RoHS compliant?

Yes, 093111-4-03N is RoHS compliant.

What is the lead time for 093111-4-03N?

The standard lead time for 093111-4-03N is approximately 12 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 17

Can Ship immediately

MOQ for out of Stock Qty: 3

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$149.52
3
$139.82
5
$133.75
8
$132.88
10 +
$124.82
