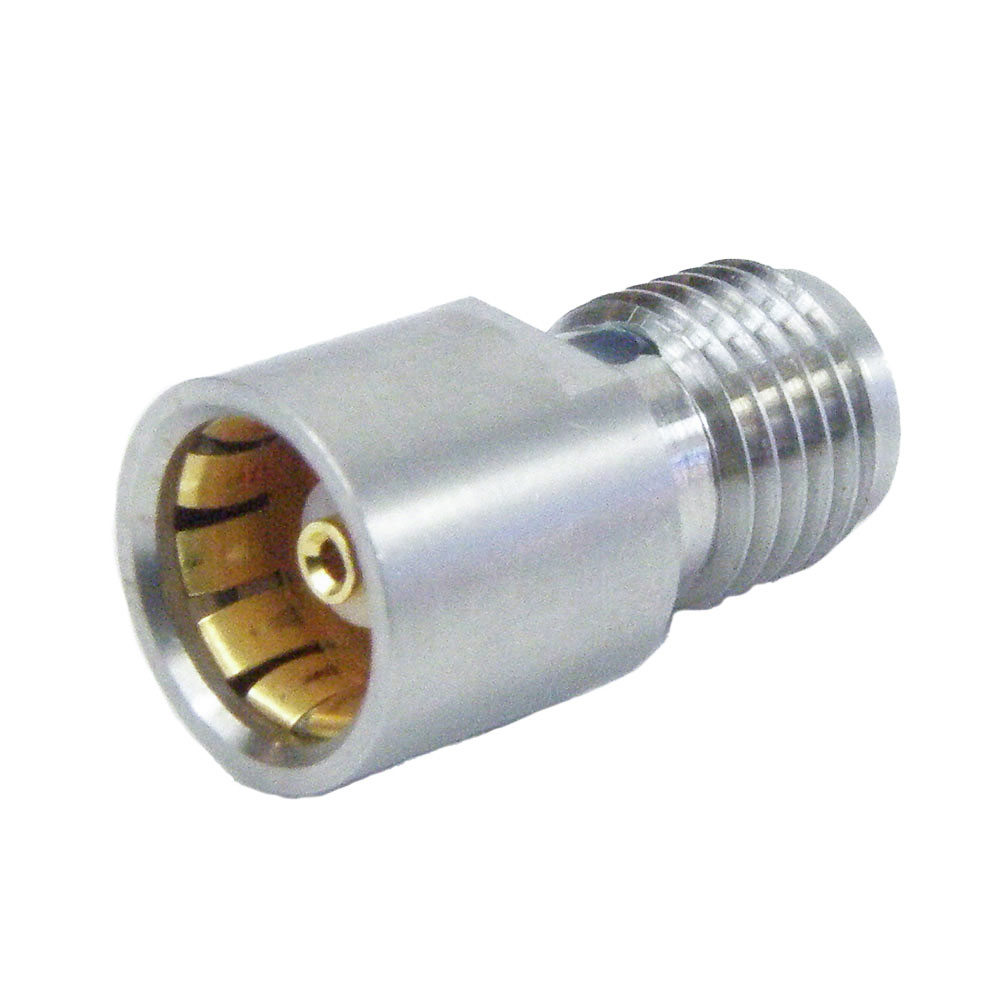

SM2090 by fairview microwave
Image is representational - see manufacturer specifications
Fairview Microwave Authorized Distributor

SM2090

The SM2090 is a straight, 50-ohm RF adapter that converts an SMA female connector to an SSMC jack connector. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The SM2090 is a straight body, 50-ohm adapter designed to connect an SMA female interface to an SSMC jack interface. It operates from DC up to a maximum frequency of 3 GHz while maintaining a low maximum VSWR of 1.25:1. The adapter's interfaces meet military standards, with the SMA connector conforming to MIL-STD-348 and the SSMC connector to MIL-C-39012. Constructed with gold-plated beryllium copper contacts, it ensures reliable signal transmission over a wide operating temperature range of -65°C to +165°C. This adapter is ideal for general-purpose test applications or any scenario requiring a connection between SMA and SSMC series connectors.

Search Keywords: SM2090

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Fairview Microwave
Part No:
SM2090
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
Bag

FREQUENTLY ASKED QUESTIONS

Is SM2090 RoHS compliant?

Yes, SM2090 is RoHS compliant.

What is the lead time for SM2090?

The standard lead time for SM2090 is approximately 15 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 0

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
1
$123.81
5
$121.78
10
$121.19
20
$120.89
50
$120.59
100 +
$120.28
