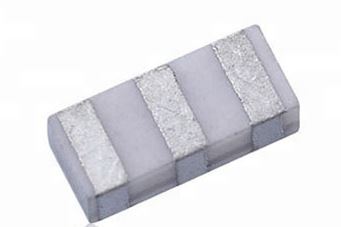

ECS-CTP-8.00-30-TR
ECS INC. InternationalCeramic Resonator - 8.00MHz - Built in Capacitor 30pF - 30 ohms - -40°C to 85°C - SMD - 6.0 x 3.0 x 1.5mm ...
DESCRIPTION
The ECS-CTP-8.00-30-TR is an SMD ceramic resonator designed as a low-cost frequency control solution with built-in capacitors for reduced component count. This device operates at a nominal frequency of 8.00 MHz with 30 pF built-in capacitance, featuring a compact 6.0 x 3.0 mm package with an industry-standard footprint. The resonator exhibits a frequency tolerance of ±0.5% at +25°C and frequency stability of ±0.2% over the operating temperature range of -40°C to +85°C, with an equivalent series resistance (ESR) of 30 O. It is rated for a maximum DC voltage of 6 V and AC voltage of 15 Vp-p, with an insulation resistance of 500 MO minimum. The ECS-CTP-8.00-30-TR is ideal for applications requiring cost-effective frequency control where absolute accuracy is not critical, such as consumer electronics, timing circuits, and general-purpose oscillator applications.
Search Keywords: ECSCTP80030TR
SPECIFICATIONS
IN STOCK: 4,000
Can Ship immediately
Minimum Order Quantity: 4000
Factory Lead-Time 20 Weeks
Datasheet
