ECS-160-10-36Q-ES-TR by ecs inc. international

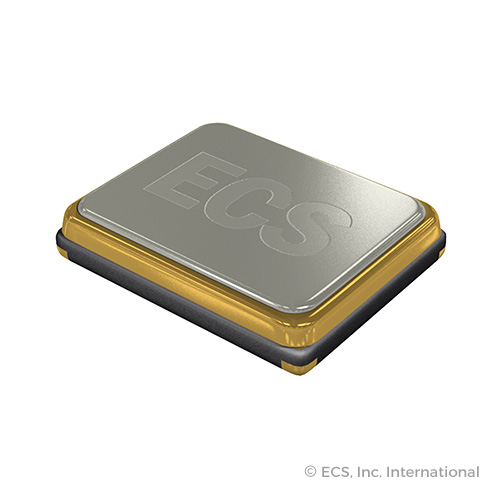

Image is representational - see mfr. specs

ECS-160-10-36Q-ES-TR

ECS INC. International

AEC-Q200 Crystal - SMD Ceramic - 16.000MHZ - ±30ppm@25°C - ±50ppm -40°C to +125°C - 10pF - 2.5x2.0x0.60mm - Tape&Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ECS-160-10-36Q-ES-TR is a miniature SMD crystal oscillator based on the ECX-2236Q package, designed for precision frequency control applications. The device operates at 16.000 MHz with a load capacitance of 10 pF and features a compact 2.5 x 2.0 mm footprint with a low profile of 0.5 mm height. It is qualified to AEC-Q200 standards and RoHS compliant, with frequency stability of ±50 ppm across the extended operating temperature range of -40°C to +125°C. The crystal exhibits excellent aging characteristics (±5 ppm in the first year) and supports drive levels from 10 to 100 µW, making it suitable for automotive, industrial, and consumer electronics applications requiring reliable timing in harsh thermal environments.

Search Keywords: ECS1601036QESTR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ECS INC. International
Part No:
ECS-160-10-36Q-ES-TR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600050
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL

IN STOCK: 3,000

Can Ship immediately

Minimum Order Quantity: 500

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
500
$0.5627
1,000
$0.5341
3,000
$0.4996
6,000
$0.4789
9,000
$0.4673
12,000
$0.4661
15,000
$0.4484
27,000 +
$0.4427
Reel Package
