ACE1V3225-510-R by eaton electronics / bussmann

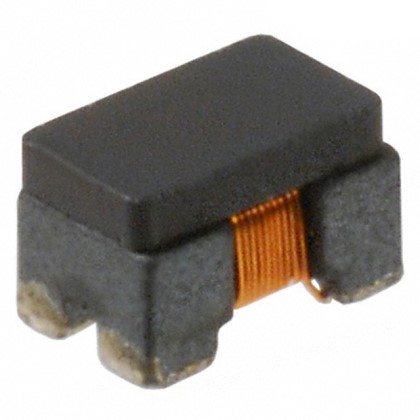

Image is representational - see mfr. specs

ACE1V3225-510-R

Eaton Electronics / Bussmann

The ACE1V3225-510-R is an AEC-Q200 qualified, automotive-grade common-mode chip inductor in a 1210 (3225 metric) package. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ACE1V3225-510-R is an automotive-grade common-mode chip inductor designed for signal line filtering. It provides a typical common-mode impedance of 5100 Ω at 10 MHz and has a common-mode inductance of 51 µH. This component features a maximum DC resistance of 0.70 Ω, a maximum DC current rating of 200 mA, and a typical rated voltage of 80 Vdc. Qualified to AEC-Q200 standards and operating from -40 °C to +125 °C, it is ideal for demanding automotive environments. Common applications include Controller Area Network (CAN), advanced driver assistance systems (ADAS), infotainment, and battery management systems (BMS).

Search Keywords: ACE1V3225510R

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Eaton Electronics / Bussmann
Part No:
ACE1V3225-510-R
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 100,900

Ships today, if you order in

Minimum Order Quantity: 1000

Multiple: 1000

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1,000
$0.3546
3,000
$0.3294
5,000
$0.3109
8,000
$0.3065
10,000
$0.2975
15,000
$0.2968
25,000
$0.2960
50,000 +
$0.2953
Reel Package
