5511M4X by e-switch

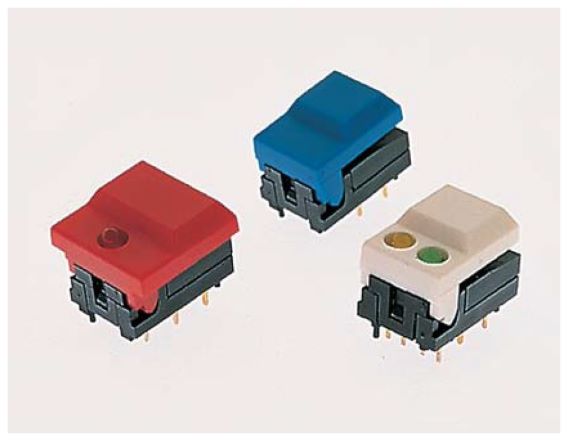

Image is representational - see mfr. specs

5511M4X

E-Switch

The 5511M4X is a momentary pushbutton switch from the 5500 series, featuring a large cap style and no LED. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 5511M4X is a momentary pushbutton switch from the 5500 series, characterized by its large cap and hinged design. It is rated for 300mA at 12 VDC and has a high life expectancy of 500,000 cycles. The switch features a maximum contact resistance of 50mΩ, an actuation force of 255 grams maximum, and operates over a temperature range of -25°C to +65°C. Its high operating life makes it suitable for applications in telecommunications, networking, computers, performance audio, and instrumentation.

Search Keywords: 5511M4X

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
5511M4X
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509033
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Bushing Type:
N/R
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
0.012A@24VAC 24 VDC
Actuator Style:
Button
Illumination:
N/R
Terminal Type:
PC Pins
Body Orientation:
Straight
Dimension:
17.5mm x 17.3mm x 14.3 mm

IN STOCK: 500

Can Ship immediately

Minimum Order Quantity: 10

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
10
$3.12
50
$2.79
100
$2.78
300
$2.69
500
$2.62
1,000
$2.38
2,500
$2.10
5,000 +
$1.82
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
