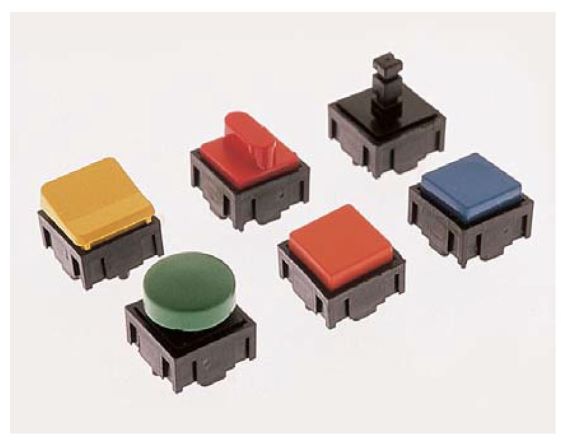

320.02E11.09BLK by e-switch
Image is representational - see mfr. specs

320.02E11.09BLK

E-Switch

The 320.02E11.09BLK is a Single Pole, Single Throw (SPST) pushbutton switch designed for printed circuit board mounting. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 320.02E11.09BLK is an SPST pushbutton switch that comes with a black square cap. It is electrically rated for 25mA at 50VDC, making it suitable for low-power signal switching. The switch requires an operating force of 135 ± 50gF and has a travel distance to make contact of 0.7mm. Designed for PCB applications, it includes alignment pins for stable through-hole mounting as shown in the recommended layout. This component is ideal for user interface functions in consumer electronics, instrumentation, and control panels.

Search Keywords: 32002E1109BLK

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
320.02E11.09BLK
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509033
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
54
Dimension:
15.88 x 15.88 x 15.3 mm
Mounting:
Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
On Off
Actuator Style:
Round Button
Contact Rating @ Voltage:
0.025A@50 VDC
Body Orientation:
Straight
Seal Location:
N/A

IN STOCK: 389

Can Ship immediately

MOQ for In Stock Qty: 25

MOQ for out of Stock Qty: 257

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
25
$2.53
50
$2.37
100
$2.14
257
$1.97
513
$1.85
770
$1.79
1,026 +
$1.62
Log in for special pricing Click for Quote Price Match Request
