200MDP1T2B1M1QE by e-switch

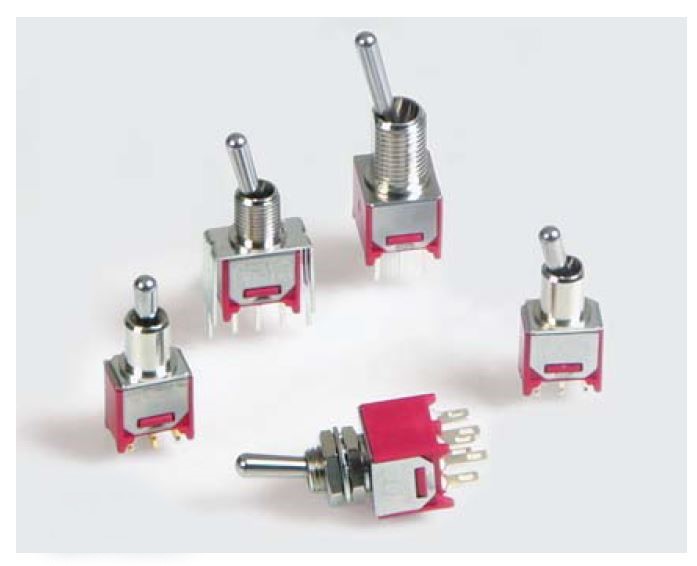

Image is representational - see mfr. specs

200MDP1T2B1M1QE

E-Switch

Toggle Switch - DPDT - On-None-On - 120VAC/28VDC - 3A - Silver Plated Contacts - Solder Lugs - 10-48UNS-2A x .220" Bushing - No Hardware ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 200MDP1T2B1M1QE is a three-position panel-mount toggle switch featuring a DPDT (double-pole, double-throw) circuit configuration designed for reliable switching applications. It is rated for 3 amps at 120VAC or 28VDC (UL, CUL certified), with a maximum rating of 1 amp at 250VAC, and incorporates silver plating on contacts for enhanced conductivity and corrosion resistance. The switch offers an electric life of 30,000 make-and-break cycles at full load, an insulation resistance of 1,000 megaohm minimum, and a dielectric strength of 1,000 V RMS at sea level, ensuring robust performance in demanding environments. Operating over a temperature range of -30°C to 85°C with an epoxy seal for environmental protection, this switch is ideal for industrial control panels, instrumentation, and equipment requiring secure three-position switching with high reliability and long operational life.

Search Keywords: 200MDP1T2B1M1QE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
200MDP1T2B1M1QE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
540

IN STOCK: 260

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
5
$7.12
25
$6.53
50
$6.27
100
$6.02
250
$5.68
540
$4.92
1,080
$4.30
2,700 +
$3.59
Suppliers Standard Package
