599-0411-127F by dialight

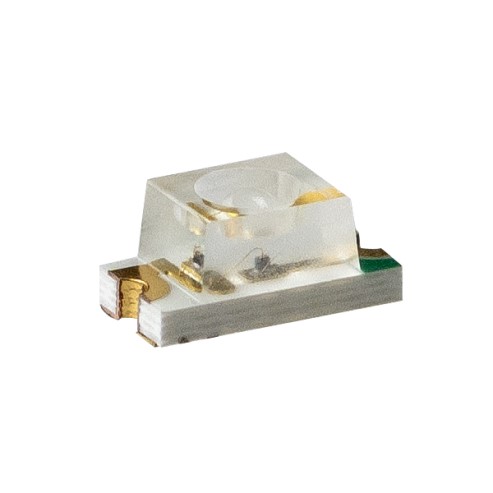

Image is representational - see mfr. specs

599-0411-127F

Dialight

599 SMD LED 1206 RED 630nm with LENS 7" Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 599-0411-127F is a surface-mount red LED (630 nm dominant wavelength) in a 1206 package with a water-clear lens, designed for indicator and display applications. It features a luminous intensity range of 50–160 mcd at typical test conditions, with a forward voltage of 1.8–2.4 V and a maximum reverse voltage of 5 V. The device operates at a forward current of 30 mA with a power dissipation of 111 mW, and supports a peak forward current of 125 mA under 1/10 duty cycle (0.1 ms pulse width). Operating temperature range is -40°C to +80°C, with storage temperature from -40°C to +85°C, and a current derating of 0.333 mA/°C from 25°C. This LED is ideal for status indicators, backlighting, and general-purpose signaling in consumer electronics and industrial equipment.

Search Keywords: 5990411127F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
599-0411-127F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541100000
COO:
MY
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL

IN STOCK: 3,000

Can Ship immediately

Minimum Order Quantity: 3000

Multiple: 3000

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
3,000
$0.0889
6,000
$0.0869
9,000
$0.0857
12,000
$0.0849
27,000
$0.0824
51,000
$0.0806
102,000
$0.0785
150,000 +
$0.0773
Reel Package
