597-6001-607F by dialight

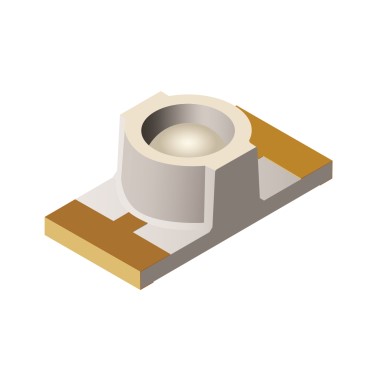

Image is representational - see manufacturer specifications
Dialight Authorized Distributor

597-6001-607F

The 597-6001-607F is a red, 3.2mm x 1.6mm x 1.1mm reverse-mount, surface-mount LED. ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 597-6001-607F is a red, reverse-mount LED in a compact 3.2mm x 1.6mm package with a water-clear lens. It features a typical luminous intensity of 71 mcd when driven with a 10 mA forward current. This AllnGaP-based device has a typical forward voltage of 2.0V, a typical dominant wavelength of 624 nm, and a peak wavelength of 639 nm. With a maximum reverse current of 10 µA and a wide operating temperature range of -55°C to +85°C, it is designed for reliability in various environments. The -607F suffix indicates it is supplied on tape and reel for automated assembly processes.

Search Keywords: 5976001607F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
597-6001-607F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8531909001
COO:
CN
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3000
Package Type:
REEL
Color Temperature:
N/A
Dominant Wavelength:
631 nm
Color:
Red
Category:
Chip LED
Dimension:
3.2 x 1.6 x 1.1 mm

IN STOCK: 11,000

Ships today, if you order in

Minimum Order Quantity: 1000

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1,000
$0.5367
3,000
$0.5084
6,000
$0.5052
9,000
$0.4842
12,000
$0.4830
27,000
$0.4818
51,000 +
$0.4806
