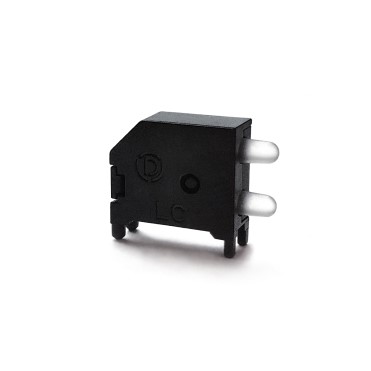

596-2828-013F
596-2828-013F
In Stock: 0
Minimum Order: 500
VIEW PRODUCT
596-1818-013F by dialight
Image is representational - see mfr. specs

596-1818-013F

Dialight

DISCONTINUED | 596 Prism® SMD 1.6mm BiLevel Rnd W,W 2mA 13" Reel ...

Datasheet
RoHS Non-Compliant
REEL Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 596-1818-013F is a low-current 2mA LED assembly featuring a 1.6mm diameter silicone dome lens with bi-level prism design, supplied on a 13-inch reel with 500 pieces per reel. This surface-mount component is available in multiple LED colors including red (630nm), orange (600nm), and yellow (588nm), each with forward voltage ratings of 1.7–2.2V at 2mA operating current and luminous intensity ranging from 5.0 to 6.0 mcd at 10mA. The assembly incorporates a viewing angle of 30° at 50% intensity and features a thermal resistance of +280°C/W for red, orange, and yellow variants. Designed for low-power indicator and status display applications, this component is ideal for battery-powered devices, portable electronics, and systems requiring minimal current consumption while maintaining reliable visual indication.

Search Keywords: 5961818013F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
596-1818-013F
Unit of Measure:
Per Each
RoHS:
No
HTS:
8541100000
COO:
MY
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
500
Package Type:
REEL
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1,500

Can Ship immediately

Minimum Order Quantity: 92

Price (USD)

Qty
Unit Price
92
$0.8772
1,000 +
$0.8262
