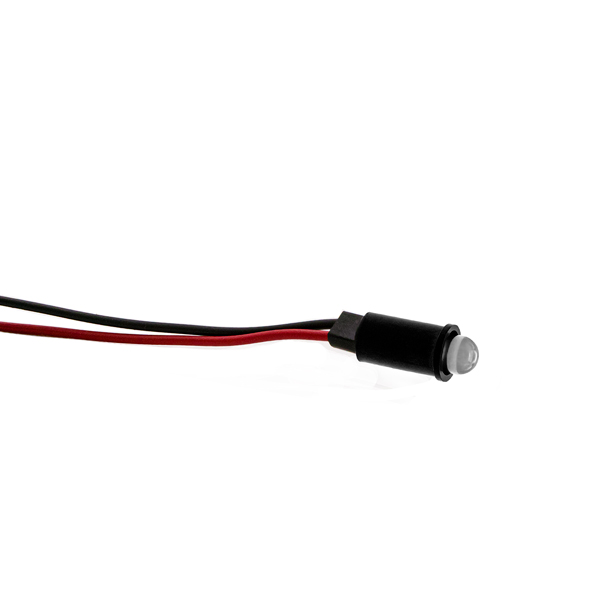

Image is representational - see manufacturer specifications
Dialight Authorized Distributor

559-5701-007F

The 559-5701-007F is a yellow, snap-in LED panel mount indicator designed for a 0.250-inch mounting hole. ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 559-5701-007F is a yellow snap-in LED panel mount indicator from the Dialight 559 series. This indicator features a yellow LED with a peak wavelength of 583 nm, a typical luminous intensity of 140 mcd at 20 mA, and a 24-degree viewing angle. It has a typical forward voltage of 2.1 V and is designed for snap-in mounting into panels between 0.031 and 0.062 inches thick. The component operates over a temperature range of -55°C to +100°C and is suitable for applications such as data-center infrastructure, electronic test instruments, and communications equipment.

Search Keywords: 5595701007F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
559-5701-007F
Unit of Measure:
Per Each
RoHS:
No
HTS:
8541402000
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Package Type:
BAG
Mounting:
Panel
Dimension:
15.88(Max) x 7.14 mm
Type:
Uni-Color
Maximum Forward Voltage per Color:
2.1(Typ) V
Color:
Yellow
Peak Wavelength:
583 nm
Lens Shape Type:
Circular
Lens Appearance:
Colored
Lens Dimensions:
5x5x5.33 mm
Intensity:
140 mcd
Viewing Angle:
24 °
Maximum Forward Current:
20 mA

FREQUENTLY ASKED QUESTIONS

Is 559-5701-007F RoHS compliant?

No, 559-5701-007F is not RoHS compliant.

What is the lead time for 559-5701-007F?

The standard lead time for 559-5701-007F is approximately 17 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 1,000

Ships today, if you order in

On Order: 1,000   can ship 3/4/27

MOQ for In Stock Qty: 25

MOQ for out of Stock Qty: 175

Factory Lead-Time 17 Weeks

Price (USD)

Qty
Unit Price
25
$3.16
50
$2.61
100
$1.78
175
$1.68
350
$1.67
525
$1.64
700 +
$1.41
