DAR71210F-HR by cynergy3

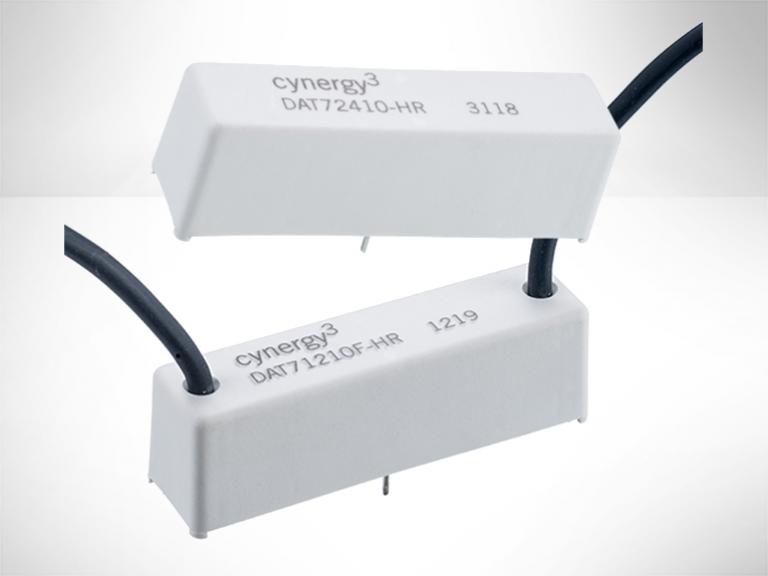

Image is representational - see mfr. specs

DAR71210F-HR

Cynergy3

High Voltage Relay - SPST-NO (1 Form A) - 12VDC Coil - Max Switching: 1kV, 3A - Rhodium Contacts - PCB-Coil - Flying Leads-Contacts ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

DAR71210F-HR is a high insulation resistance, high voltage reed relay designed for applications requiring very high isolation voltages and low leakage current. It features 10kV isolation across contacts, rhodium contact material for low contact resistance, and a 12V DC coil voltage. The relay offers an insulation resistance of 1x10^14 Ohms minimum, operates within a temperature range of -20°C to +70°C, and includes flying lead HV connections. With a maximum switching power of 50W, switching voltage of 1000V DC or AC peak, and switching current of 3A, this relay is ideal for sensitive test and measurement circuits, cardiac defibrillators, and high voltage power supplies where high reliability and minimal leakage current losses are critical.

Search Keywords: DAR71210FHR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cynergy3
Part No:
DAR71210F-HR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8535300080
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO
Mounting:
Through Hole
Operating Temperature:
-20 to 70 °C

IN STOCK: 20

Can Ship immediately

MOQ for out of Stock Qty: 5

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$75.34
5
$74.60
10
$70.54
15
$70.20
20 +
$67.41
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
