8820K16 by cutler-hammer / eaton

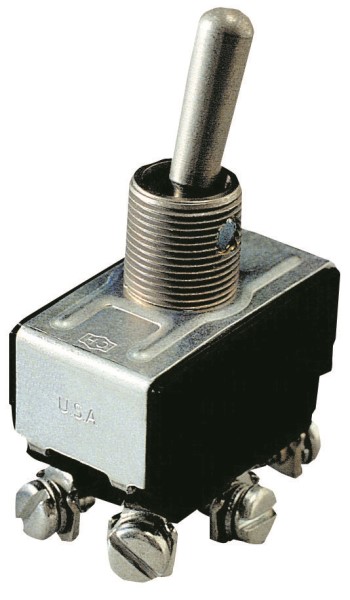

Image is representational - see manufacturer specifications
Cutler-Hammer / Eaton Authorized Distributor

8820K16

Switch Toggle ON OFF ON DPDT Round Lever Screw 20A 115VAC 28VDC Panel Mount with Threads ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The CUTLER HAMMER/EATON part 8820K16 is a versatile switch toggle designed for various applications. It features a durable construction and a round lever with a screw for easy operation. This switch is designed with DPDT (Double Pole Double Throw) functionality, enabling multiple circuit control options. It has a rating of 20A for 115VAC and 28VDC, making it suitable for a wide range of voltage requirements. The panel mount design with threads ensures secure installation and stability. This switch toggle is a reliable and efficient solution for your electrical control needs.

Search Keywords: 8820K16

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cutler-Hammer / Eaton
Part No:
8820K16
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
20@115VAC 28VDC A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
33.27 x 19.05 x 56.26 mm
Operating Temperature:
-17.8 to 65.6 °C

FREQUENTLY ASKED QUESTIONS

Is 8820K16 RoHS compliant?

Yes, 8820K16 is RoHS compliant.

What is the lead time for 8820K16?

The standard lead time for 8820K16 is approximately 12 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 42

Ships today, if you order in

On Order: 100   can ship 1/4/27

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$50.43
5
$46.59
10
$41.19
25
$38.77
50
$37.97
100
$35.50
250 +
$31.31
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
