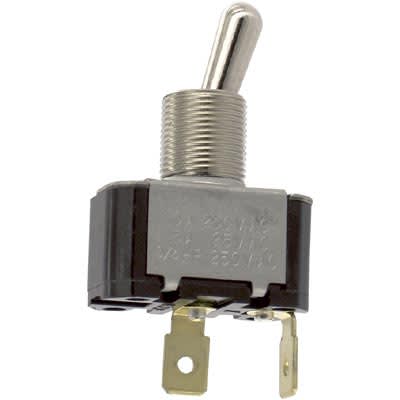

7501K15 by cutler-hammer / eaton
Image is representational - see manufacturer specifications
Cutler-Hammer / Eaton Authorized Distributor

7501K15

Switch Toggle - On-Off - SPST - Non Illuminated - 7500 Series - 15 A. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 7501K15 is a single-pole single-throw AC rated general purpose Toggle Switch with 0.25-inch spade terminals, On-None-Off operation, silver-plated copper with silver buttons contact, thermoset molding base and bright nickel-plated toggle lever and bushing finish. This AC rated toggle switch offers the widest selection of features and the design flexibility to meet a variety of applications.

Search Keywords: 7501K15

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cutler-Hammer / Eaton
Part No:
7501K15
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Pole Throw Configuration:
1P1T (SPST)
Switch Configuration:
OFF None ON
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Quick Connect
Dimension:
28.57 x 15.87 x 56.35 mm
Operating Temperature:
-17.8 to 65.6 °C

FREQUENTLY ASKED QUESTIONS

Is 7501K15 RoHS compliant?

Yes, 7501K15 is RoHS compliant.

What is the lead time for 7501K15?

The standard lead time for 7501K15 is approximately 14 days. In-stock quantities ship from Master Electronics.

IN STOCK: 1,222

Ships today, if you order in

On Order: 1,000   can ship 10/5/26

Minimum Order Quantity: 25

Multiple: 25

Factory Lead-Time 14 Weeks
