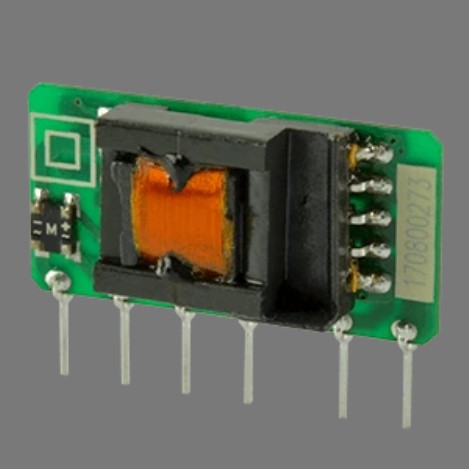

PBO-1-S24 by cui inc.
Image is representational - see mfr. specs

PBO-1-S24

CUI Inc.

AC/DC Power Supply - Open Frame - PCB Mount - SIP - 1 Watt - 24V @ 0.042A ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PBO-1-S24 is an AC-DC power supply module designed to deliver regulated 24V DC output with up to 1W continuous power in an ultra-compact SIP package. It features a wide input voltage range of 85–305 Vac (or 70–430 Vdc), with output current capability from 2.1 mA minimum to 42 mA maximum, and includes integrated over-current and short-circuit protections. The module provides 3,000 Vac isolation and achieves 68% typical efficiency at 230 Vac input, with ripple and noise limited to 120 mVp-p at full load. Available in both straight-pin and bent-pin configurations, the PBO-1-S24 operates reliably across -40°C to +85°C and is suitable for industrial control systems, smart home applications, intelligent building automation, and other embedded power applications requiring compact, isolated DC conversion.

Search Keywords: PBO1S24

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
PBO-1-S24
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
TRAY
Dimension:
35.0(Max) x 18.0(Max) x 11.0(Max) mm
Family:
PBO-1
Dimensions LxWxH:
1.378(Max) x 0.709(Max) x 0.433(Max) in
Input Connector Type:
PC Pins
Grade:
Commercial
Input Frequency:
47 to 63 Hz
DC Input Voltage:
70 to 430 V
AC Input Voltage:
85 to 305 V
Efficiency:
68(Typ) %
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 340

Ships today, if you order in

Minimum Order Quantity: 35

Qty
Unit Price
35
$4.26
80
$4.18
140 +
$3.95
